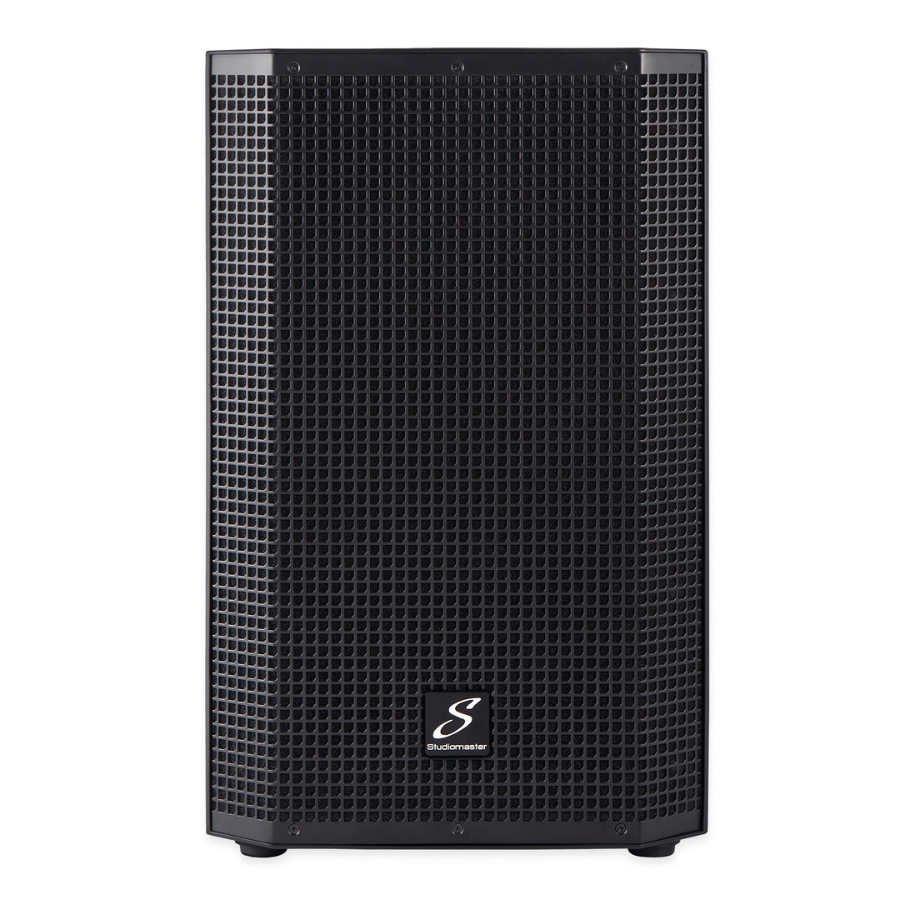

Studiomaster Vortex 12A 12" Active Coaxial Speaker

A brand new range of 10″ and 12″ active moulded speaker cabinets. Featuring high performance 1400W (peak) power amplifiers and a unique coaxial speaker configuration. The Vortex series are designed to perform and exceed your expectations and requirements for lightweight, portable PA cabinets.

The all new VORTEX series feature set is considerable, with Bluetooth input with TWS, built in DSP control, Dual 35mm top hat sockets, triple input channels, multiple M10 flying points, up to 3 carry handles for portability and much more.

CABINET TYPE – 12″ 2-way coaxial active
MAX SPL – 125dB
AMP PEAK – 1400w
MAX PGM – 700w
AMP RMS – 350w (300+50)
WEIGHT (NET) – 15.5kg
FREQ RESPONSE – 50Hz-20kHz
INPUT SENSITIVITY – 0dBu
COVERAGE(h x v) – 80 x 80 degree
LF DRIVER – 12″ / 65mm VC
HF DRIVER – 34mm VC / 1″ throat
CROSSOVER FREQUENCY – 2.2kHz
24bit DSP – Mode select, 3 band EQ, delay, volume
DSP MODES – Music, live, dj, speech, monitor
CONNECTION – 2x XLR/JACK input, 1x 3.5mm, XLR output
CONNECTIVITY –  BLUETOOTH playback
MOUNTING –  Dual top-hat, 5x M10 flying points
DIMENSIONS (W/H/D) – 360 / 585 / 310mm
