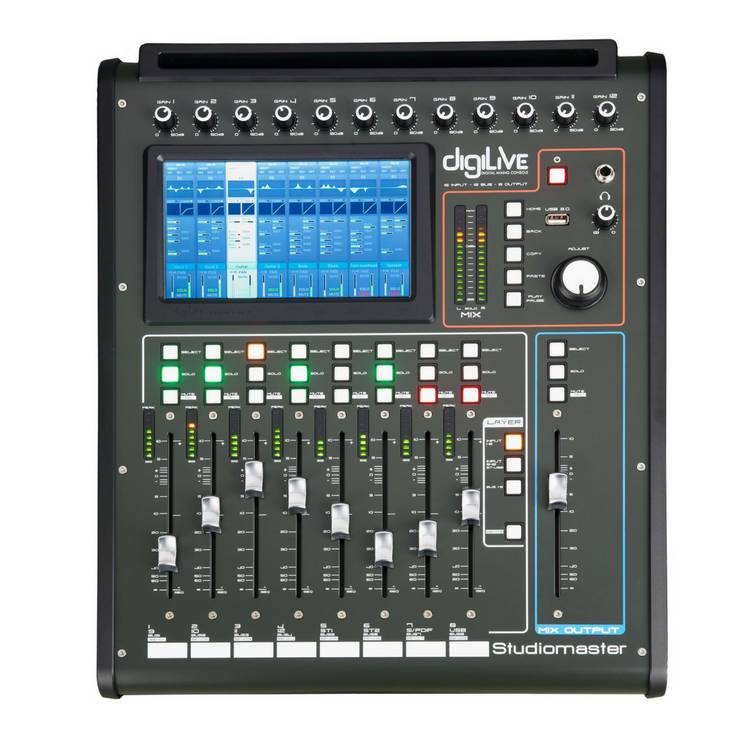

Digilive 16 - compact digital console

The Studiomaster DigiLive Digital Mixer combines Studiomaster's experience in live signal processing with the latest technology, providing you with complete control over your sound. The Studiomaster DigiLive Mixer features a compact design with 16 inputs, a large touch screen display, motorised faders and USB connectivity. Complete with recallable settings and parameters, along with complete remote control via Wi-Fi.

Features

• Intuitive and clear 1024 x 600 7'' touch screen
• Clear visual representation of all channel and mixer settings
• Adjust any setting via either the touch screen or encoder(s)
• 100mm motorized faders with one touch layer selection
• Solo, mute and channel select buttons for each channel
• 4-band parametric EQ
• Variable gain and EQ, plus the ability to save EQ presets for instant recall
• Fully-adjustable gate and compression
• 4 stereo effects with reverb, delay, modulation and 15-band graphic EQ
• Depth and gain reduction metering for accurate adjustment
• 16 internal busses with 8 balanced XLR outputs
• Comprehensive routing facilities
• S/PDIF I/O and AES-EBU digital outputs
• Input and output channel metering via the high definition display screen
• Pre and post fader metering
• Built-in media player and recorder
• Playback audio via either USB or Bluetooth

Specifications

• Channels:
  • 12 x Mic Input
  • 2 x Line Input (Stereo)
• Input Connectors:
  • Mic Input: 8 x XLR, 4 x Combo XLR/Jack
  • Line Input: 2 x 6.5mm Stereo Jacks, 1 x 3.5mm Stereo Jack in Parallel with One Stereo Channel
• Internal Busses: 16
• Stereo Monitor: 1 x TRS Jack Output
• Headphone Output: 1 x TRS Jack
• Display Screen: 7'' High Definition Touch Screen
• Sample Frequency: 48kHz
• AD/DA: 192kHz, 24-Bit
• DSP: 40-Bit Floating Point, SHARC Processor
• iPad Remote Control: Yes
• Effects: Up To 8 Assignable Effects Modules
  • Reverb, Modulation, Delay, 15-Bands GEQ
• Digital Inputs/Outputs:
  • AES/EBU: Output (XLR)
  • S/PDIF: Input/Output (RCA Phono)
  • USB Interface: 2 for Playback/Recording, Scene Storage and System Updates
  • Network: Yes via Wi-Fi External Module
  • Bluetooth: Yes via External Module
• Dimensions: 350mm x 380mm x 150mm
• Power: 90V-240V ~ 50Hz/60Hz Power Supply, 12VDC Output
