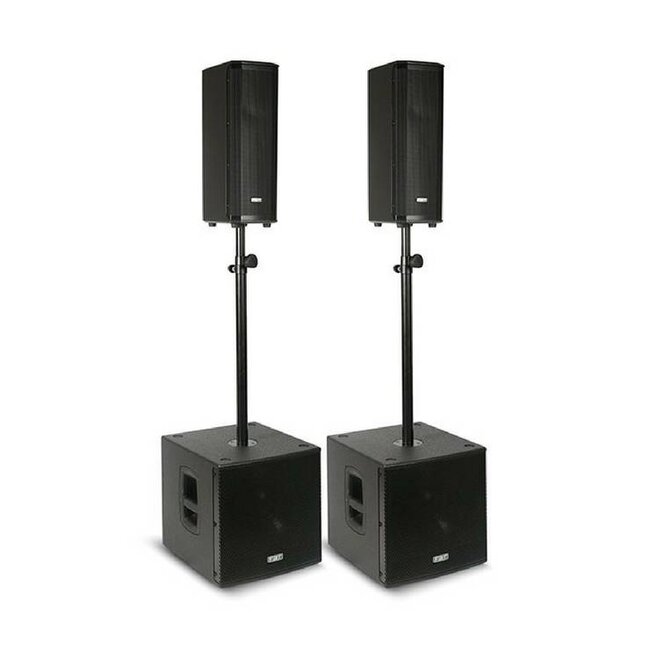

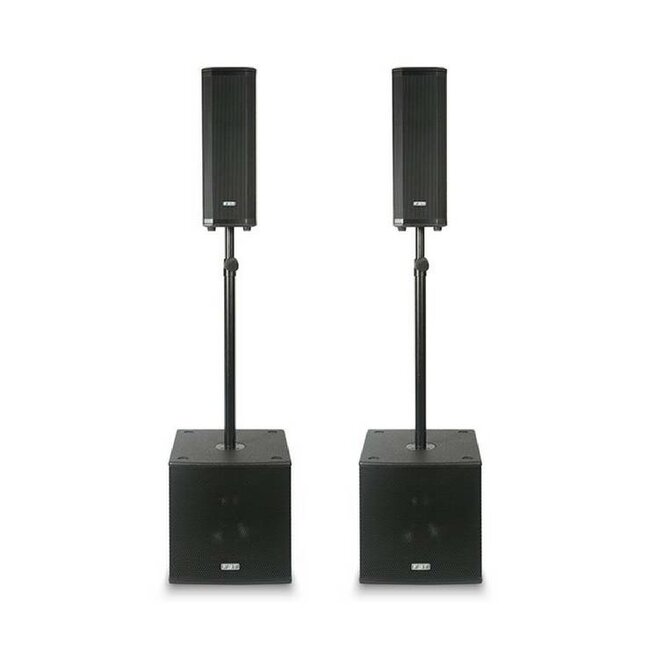

VENTIS VN2000 Active PA System (206A TOP & SUBLINE 112SA SUB)

The FBT VENTIS range offers powerful DSP with 6 versatile presets. Crafted by expert FBT engineers, the presets offer a performance for every requirement.

ORIGINAL / LIVE - The renowned, smooth FBT sound
VOCAL - A special EQ setting to maximise speech intelligibility
DJ - Designed to keep the energy high and your audience dancing
TOURING - The reliability and the roar of the industry’s most popular touring systems
LOUDNESS - The ultimate preset for listening at a medium or low volume
WARM - A special setting to emphasise full-bodied, low-mid frequencies.

Ventis 206A Description

The VENTIS 206 and 206A can be deployed as a front fill, an under-balcony fill or as a main providing pristine speech intelligibility or simply as the full-range companion of a subwoofer. Constructed in 12mm birch plywood, the 206 and 206a has an integrated rear handle, an optional mounting bracket and, most importantly, an astonishing size to SPL ratio.

The enclosures are as suitable for fixed installation as they are for use on the stage.
M10 mounting points are included as standard while an optional U-bracket can be used for wall-mounting.
For use on the road, the VENTIS models include aluminum handles with rubber inserts, and a 35mm polemount socket.

Specifications

2-way, bi-amplified, bass reflex design
Biamped: 700W RMS LF and 200W RMS HF power amplifiers in Class D for LF and in Class H/AB for HF
Digital Signal Processor with graphic display
15 mm (0.59”) birch plywood scratch resistant enclosure and internal bracing
High efficiency switch mode power supply
Control Panel features balanced XLR/Jack input, XLR LINK OUT, 2 x Volume, RCA Stereo input, DSP display with rotative encoder and push
2x165mm (6.5”) LF woofer with 38mm (1.5”) voice coil, custom made for FBT
25mm (1”) exit throat B&C HF compression driver with 36mm (1.4”) voice coil
Frequency response from 70Hz to 20 kHz
70°H x 50°V Constant Directivity Rotatable Horn
Wall bracket mount thread, 35mm (1 3/8”) top-hat
One integrated handle
12mm (0.47”) birch plywood scratch resistant enclosure and internal bracing
Power cord: 5m
Configuration: 2 Way
Built in amplifier: 900w (700w LF + 200w HF)
Built in amplifier peak: 1800w (1400w LF + 400w HF)
Frequency Response: 70Hz - 20kHz -6dB
Low Frequency Woofer: 2x 6.5
High Frequency driver: 1
Maximum SPL continuous/peak: 124/131dB
Dispersion (HxV):70� x 50� rotatable
Input Impedance: 22kOhm
AC power requirements: 640VA
Input Connector: XLR/Jack Combo socket with XLR link out, RCA stereo input

Dimension
190 x 560 x 260 mm

Weight
12.3 kg

Ventis 112SA Description
The FBT Audio Subline 112SA is an active subwoofer equipped with 700w of power alongside a 12-inch high excursion magnet woofer and a 3-inch voice coil, exclusively made for FBT by B&C. This subwoofer has a frequency response that ranges from 40Hz to 140Hz and a bass-reflex design.

Equipped with a newly engineered 700w Class D amplifier, the Subline 112SA can reach an impressive maximum sound pressure level of 133dB and provides a punchy low end. The 112SA is also fitted with a highly efficient digital signal processor with eight EQ presets to choose from with low-pass filter crossover settings and a cardioid configuration. Found on the rear of the 112SA is a control panel that provides you with controls for the EQ presets, volume, phase reversal and an eight-step delay that ranges from 0.25m to 3.5m.

The Subline 112SA comes housed in a 15mm birch plywood enclosure that is covered with a scratch-resistant coating that keeps itself protected while in transit. The housing features two integrated aluminum handles, as well as an M20 top mounted speaker stand socket so you can mount a satellite speaker if you require.

Specifications

Bass-reflex design with high SPL and punch
320mm (12”) high excursion magnet woofer with 75mm (3”) voice coil
Frequency response from 40Hz to 140Hz
New amplifier engineered and manufactured by FBT, 700W RMS LF in Class D
Digital Signal processor with 8 presets, 2 equalization with 2 LPF Crossover settings, cardioid configuration
Control panel with Stereo XLR in/outs, Volume, EQ presets, 8 steps Delay from 0.25m to 3.5m, Phase Reversal Switch 0°-180°, 3 status LED indicators
15 mm (0.59”) birch plywood scratch resistant enclosure with internal bracing
M20 (20mm) top mount speaker stand socket and two aluminum ergonomic FBT handles
Configuration: Subwoofer
Built-in amplifier LF/HF: 700w
Built-in amplifier peak LF/HF: 1400w
Frequency response: 40Hz - 140Hz
Low Frequency woofer: 12" (3" VC)
Maximum SPL cont/peak: 130/133dB SPL
Dispersion: Omnidirectional
Input connector: Stereo XLR In/Out (High Pass/Link Out)
Power cord: 5m IEC

Dimensions
430 x 447 x 480 mm

Weight
50.7 kg
