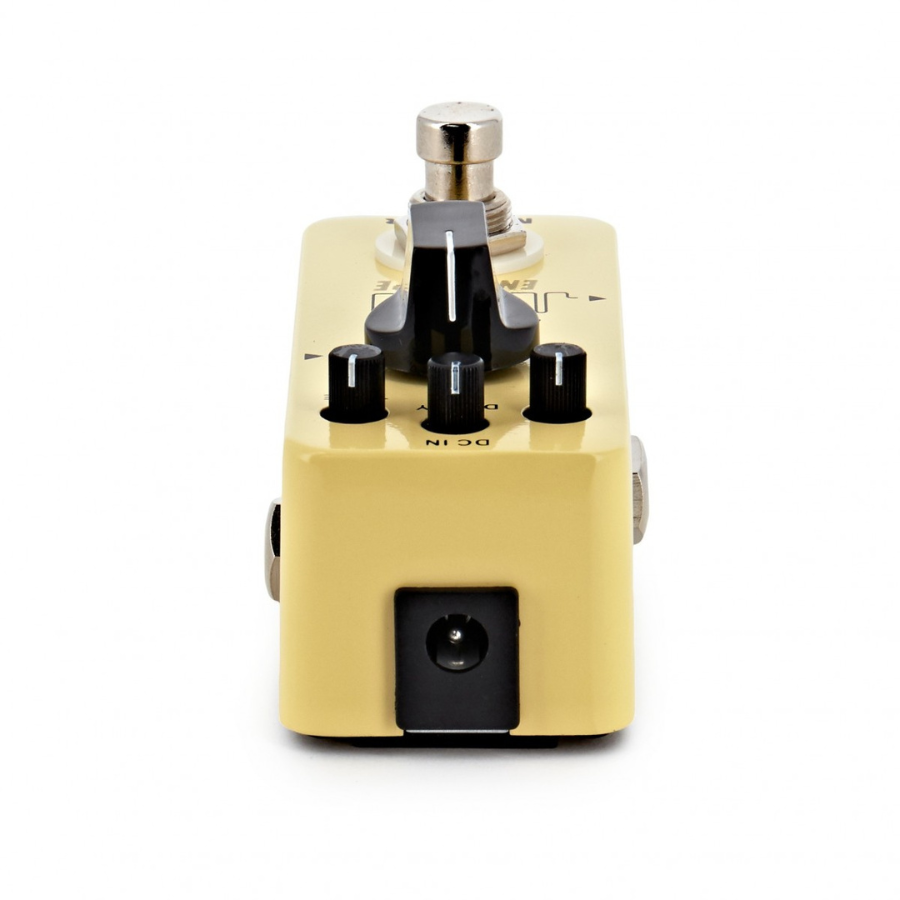

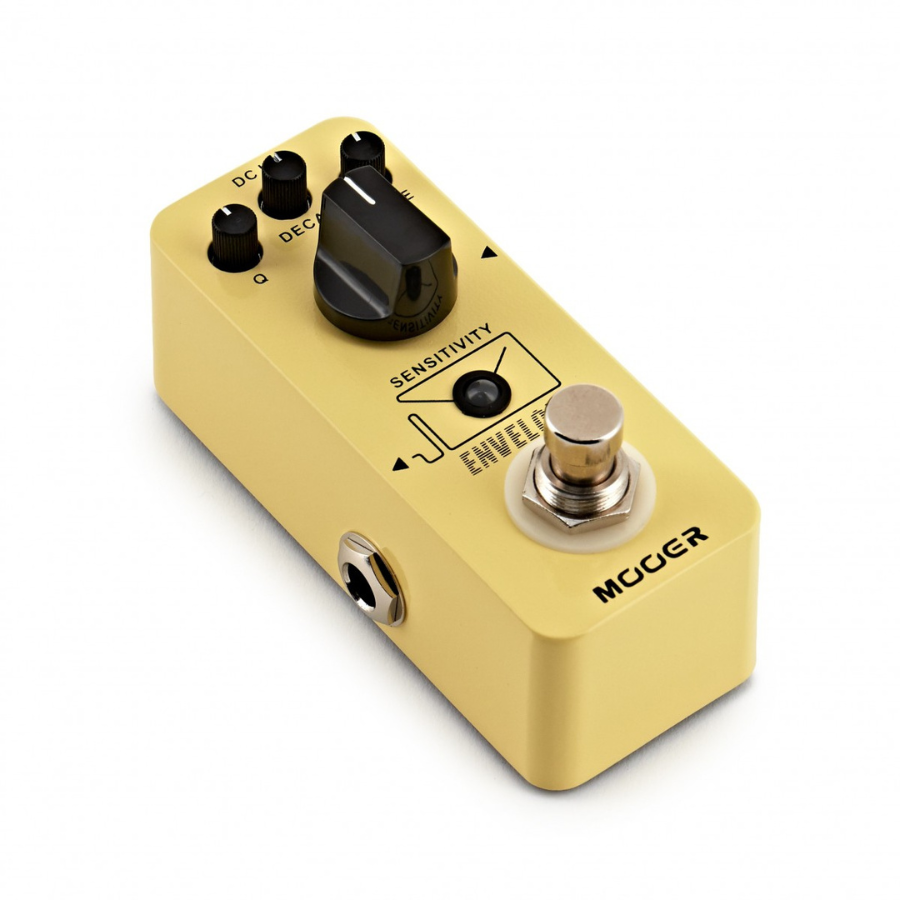

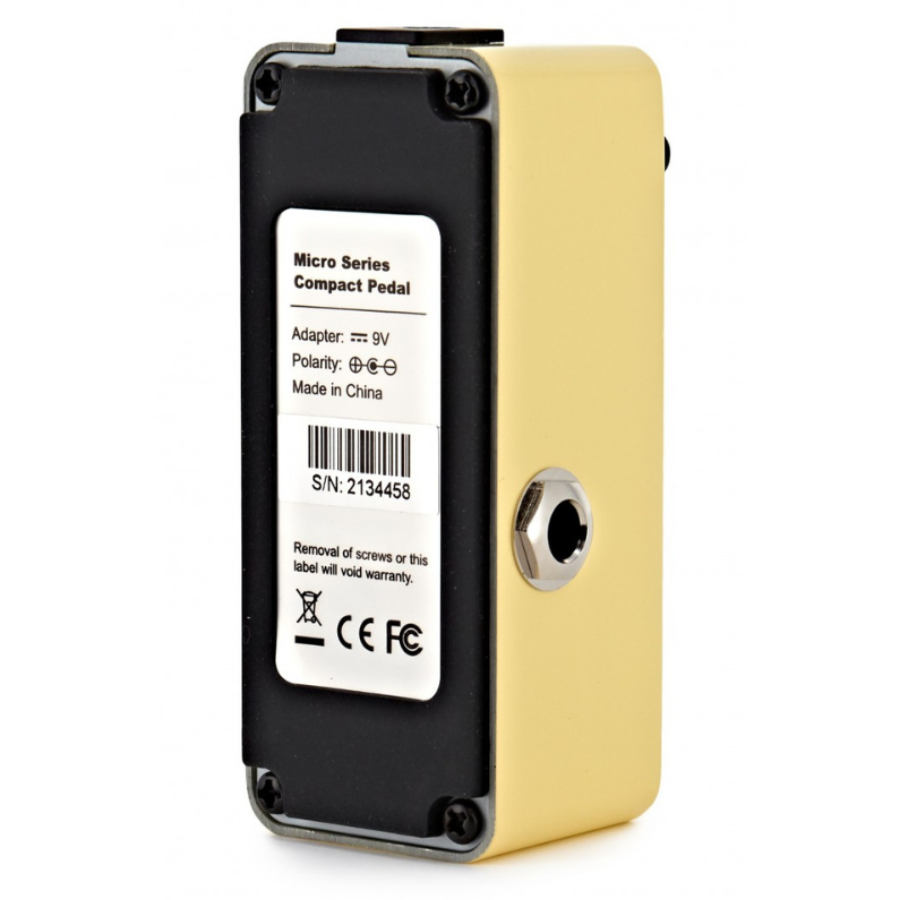

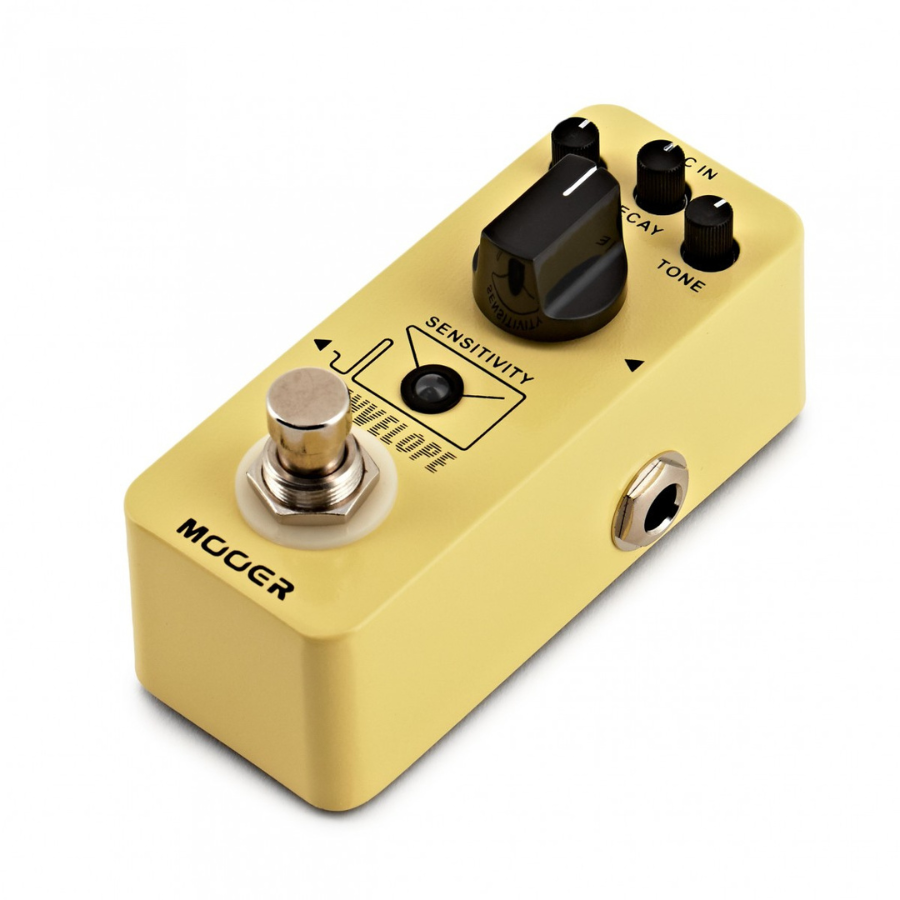

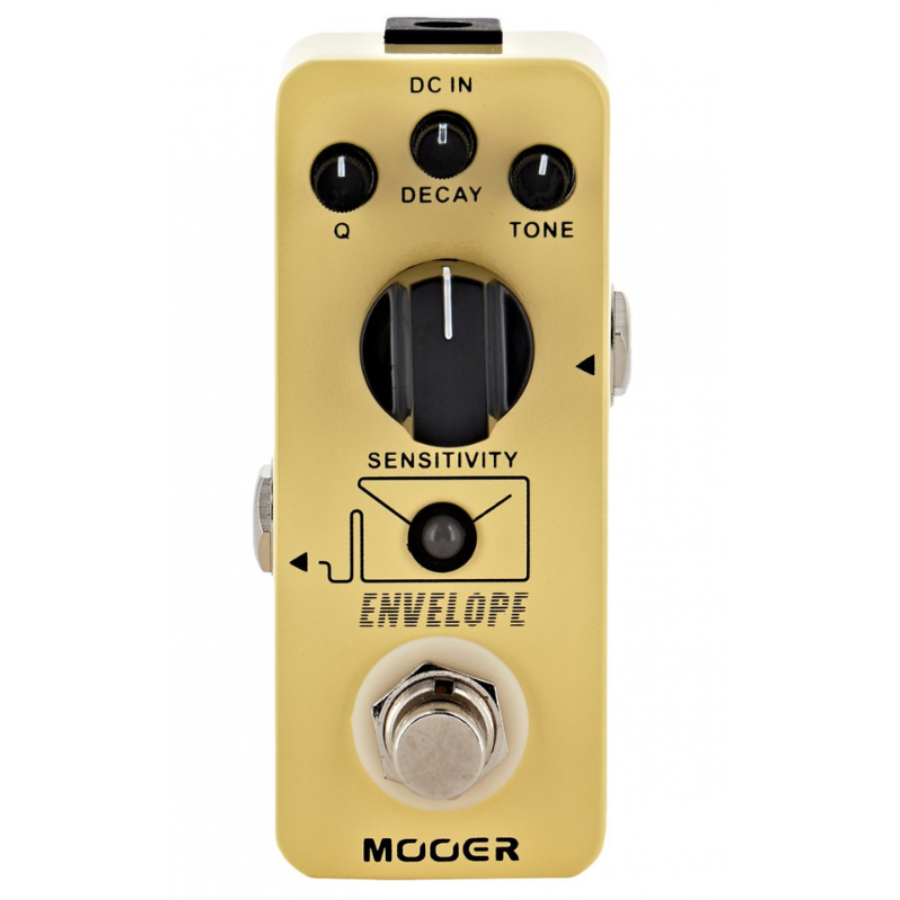

Mooer Envelope Analogue Auto Wah Pedal

The MAW2 comes equipped with four simple yet dynamic controls, which include sensitivity, Q, decay, and tone. With the sensitivity control, you can alter the response of the envelope filter in relation to the input of the instrument. Turn the knob clockwise for a sensitive and responsive attack, or counter-clockwise for less sensitivity and more difficulty to open the filter.

The Q controls can decrease the frequency band but increases the peak for a pronounced and dramatic wah effect, alongside offering a subtle effect due to its wider frequency band, and lower peak. There is a decay control for altering the open and closing of the filter. Finally, the tone knob is for controlling the wah's sonic characteristics. Provide a bright, high tone or a full-bodied and rounder sound.

Specifications

• Product Code: MAW2
• Power: AC Adapter 9V DC
• Current Draw: 20mA
• Input: ¼” Mono Audio Jack
• Input Impedance: 1Meg Ohms
• Output: ¼” Mono Audio Jack
• Output Impedance: 1k Ohms
• Controls: Sensitivity, Q, Decay, Tone
• Dimensions: 9.35 x 4.2 x 5.2 cm
• Weight: 0.16kg
