Boss GX-700 Rack Mount Guitar Effect Processor (Second Hand)

Hundreds of high quality sounds at the tip of your fingertips.

GX-700 GUITAR EFFECTS PROCESSOR

AD CONVERSION:
22 bit AF Method

DA CONVERSION:
18 bit 16 times Oversampling Modulation

SAMPLING FREQUENCY:
44.1 kHz

PROGRAM MEMORIES:
200: 100 (User) + 100 (Preset)

NOMINAL INPUT LEVEL:
INPUT: - 10 dBm
RETURN: - 10 dBm

INPUT IMPEDANCE:
INPUT: 1 MW
RETURN: 450 kW

NOMINAL OUTPUT LEVEL:
OUTPUT: - 10 dBm to + 4 dBm
SEND: - 10 dBm

OUTPUT IMPEDANCE:
OUTPUT: 3 kW or less
SEND: 2 kW

HEADPHONES OUTPUT:
1.2 mW (33 W Load)

DYNAMIC RANGE:
100 dB or greater (IHF - A)

CONTROLS

FRONT:
INPUT LEVEL Knob
NUMBER / VALUE Knob
POWER Switch
EFFECT SELECT Buttons - COMP, WHA, OD/DIST, PREAMP, LOOP, EQ, SP.SIM, NS, MOD,
DELAY, CHORUS, TREM/PAN, REVERB, LEVEL CHAIN
PLAY Button
WRITE Button
PARAMETER Button L / R
BYPASS Button
TUNER/UTILITY Button

REAR: (Controls)
OUTPUT LEVEL Knob

DISPLAY:
16 Characters, 2 lines (backlit LCD)

INDICATOR:
PEAK Indicator

CONNECTORS

FRONT:
INPUT Jack
HEADPHONES Jack

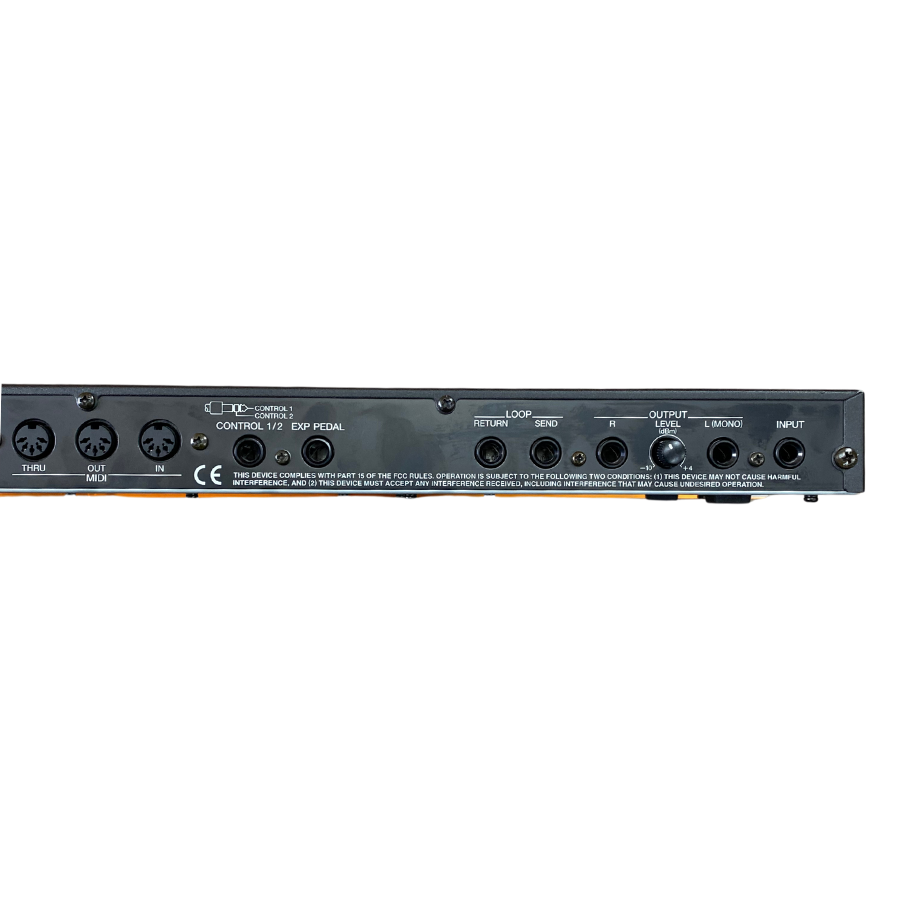

REAR:
INPUT Jack
OUTPUT L (MONO) / R Jack
SEND Jack
RETURN Jack
Expression Pedal Jack
CONTROL 1/2 Jack
MIDI Connectors (IN, OUT, THRU)
AC ADAPTOR Jack

POWER SUPPLY:
AC 14V; Supply AC Adaptor (BOSS BRC-120, 230, 240)

CURRENT DRAW:
800 mA

DIMENSIONS:
482 (W) x 197 (D) x 44 (H) mm
19 (W) x 7 - 3 / 4 (D) x 1 - 3 / 4 (H) inches
(EIA - 1U rack mount type)

WEIGHT:
2.0kg / 4lbs 7oz (excluding AC Adaptor)
