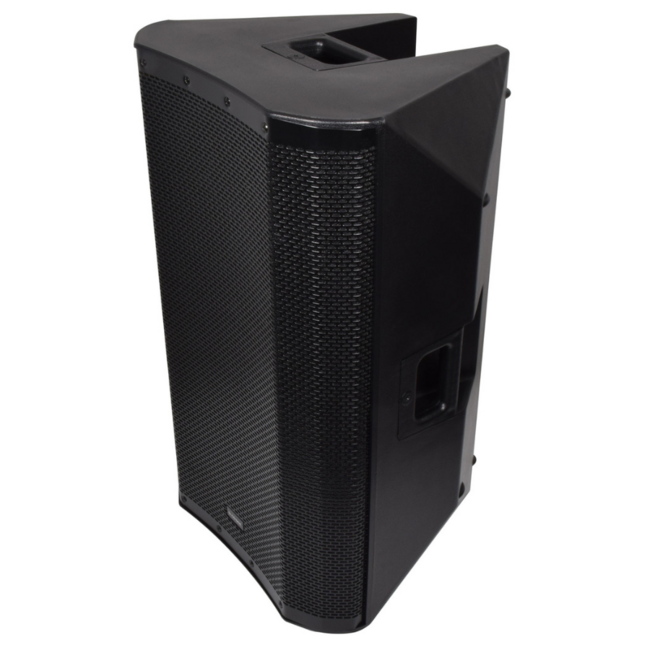

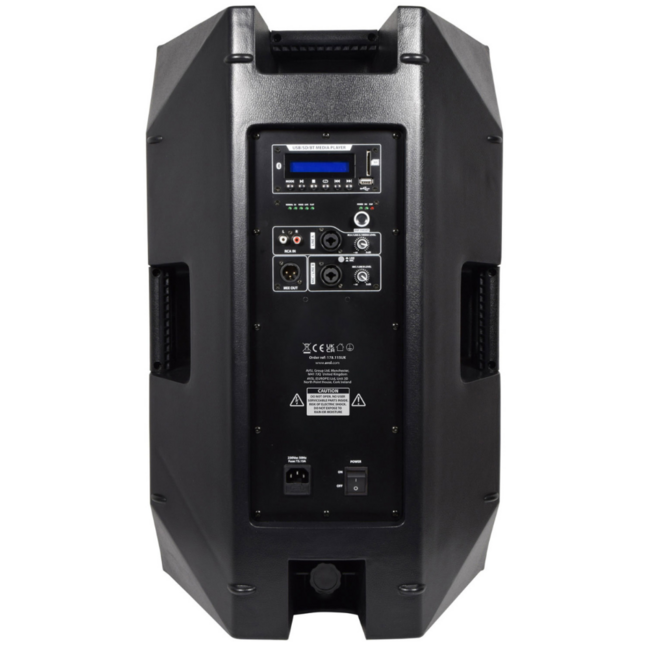

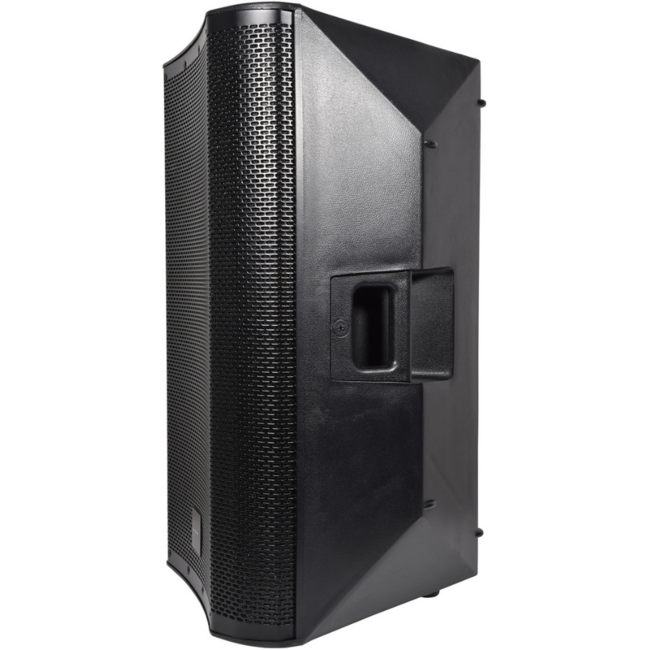

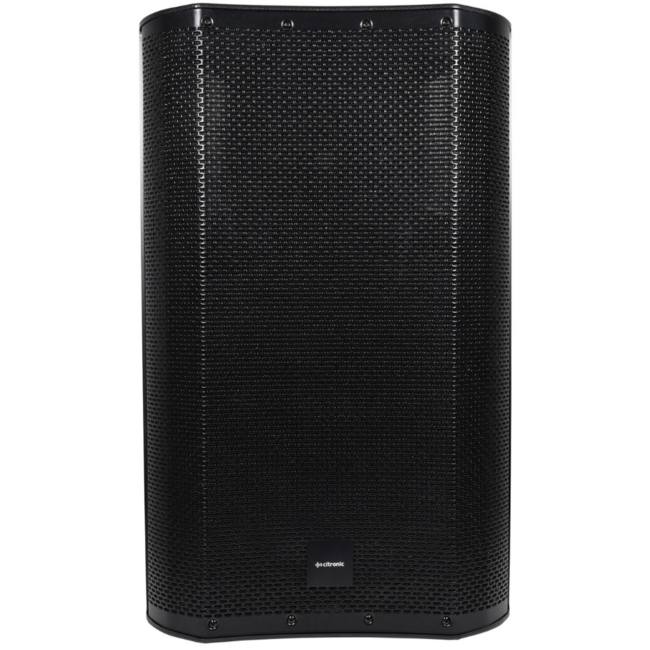

Citronic CASA-15A Active Cab

Versatile full-range active moulded PA cabinets with built-in high efficiency class D amplifier. A DSP controller offers 5 switchable output profiles which are suited to different program material. Inputs are provided on XLR/jack with mic/line level switching and RCA line connectors. A built-in audio module provides playback from USB or SD media and Bluetooth wireless pairing. These cabinets are fully featured for virtually any PA application and pair perfectly with the CASA series sub cabinets for high energy sound reinforcement.

• High efficiency class D bi-amplifier section
• DSP speaker control with 5 selectable profiles
• Inbuilt USB/SD audio player
• Bluetooth wireless connectivity
• High impact moulded cabinet with side and top handles.
• 35mm pole mount socket

• Weight 22.0kg
• Dimensions 705 x 430 x 375mm
• Inputs XLR/jack mic/line, XLR/jack/L+R RCA line
• Frequency response 45Hz - 20kHz
• SPL max. 124.5dB
• Sensitivity 97dB
• Output power peak 1400W
• Output power : max. 700W
• Output power : rms 350W
• HF driver 44mmØ (1.75") Ti compression driver
• Voice coil 63mmØ (2.5")
• Main driver 380mmØ (15")
• Power supply 230Vac, 50Hz (IEC)
• Audio source USB/SD player + Bluetooth receiver
• Line output XLR
• DSP settings Normal, DJ. Voice, Live, Flat
