CX-500 Condenser Instrument Microphone with MA500 phantom power adaptor

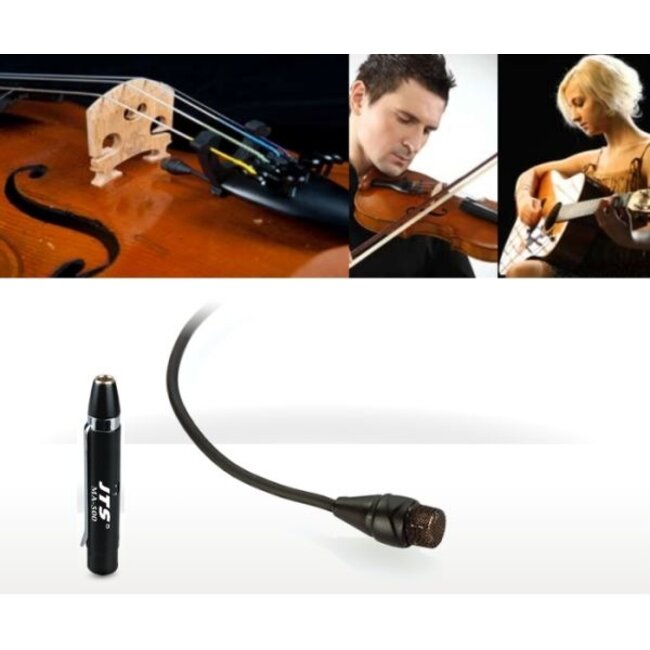

JTS CX-500 stringed instrument condenser microphone with MA-500 phantom power adapter

General Description

The JTS CX-500 is a subminiature condenser microphone ideal for miking violins, guitars, and other stringed instruments thanks to its sophisticated capsule technology and tailed response curve. Various mount kits are included for the best fit to any kind of instrument.

The CX-500 can be used wirelessly with a bodypack transmitter or for wired applications, used with the (supplied) MA-500 phantom power adapter.

Features

Mounting kit for instruments
Miniature condenser capsule
Can be used wired or as part of a wireless system

Delivery Includes

1 CX-500 stringed instrument microphone
1 MA-500 phantom power adapter

Technical Data

Type Omni-directional Condenser
Frequency Response 20~20,000 Hz
Sensitivity (at 1,000Hz) -58±3dB*(1.25mV)*0dB=1V/μbar
Impedance 1.5kΩ
Max SPL for 1% T.H.D. 130 dB
Signal-To-Noise Ratio 68 dB
Output Connector 4-Pin Mini XLR
Power Supply 1-5 VDC
Current Consumption ≤0.05mA
Weight 6.5g (including cable)
Dimensions 6 x 13mm
