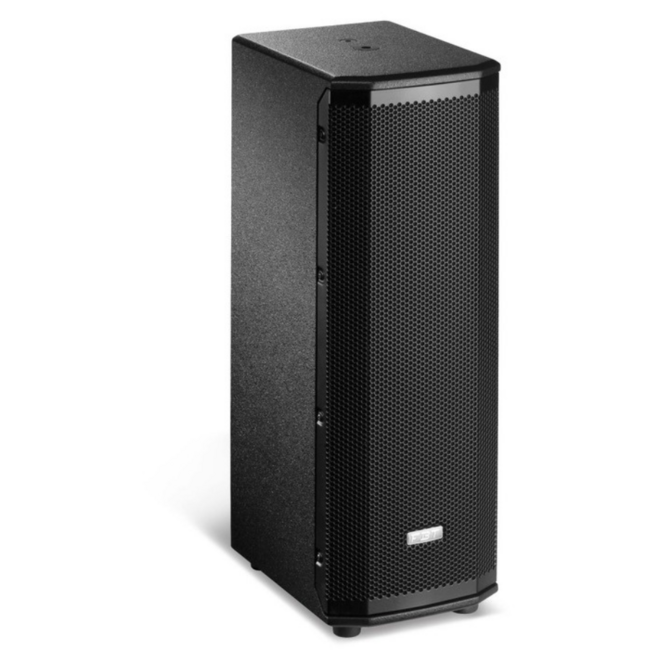

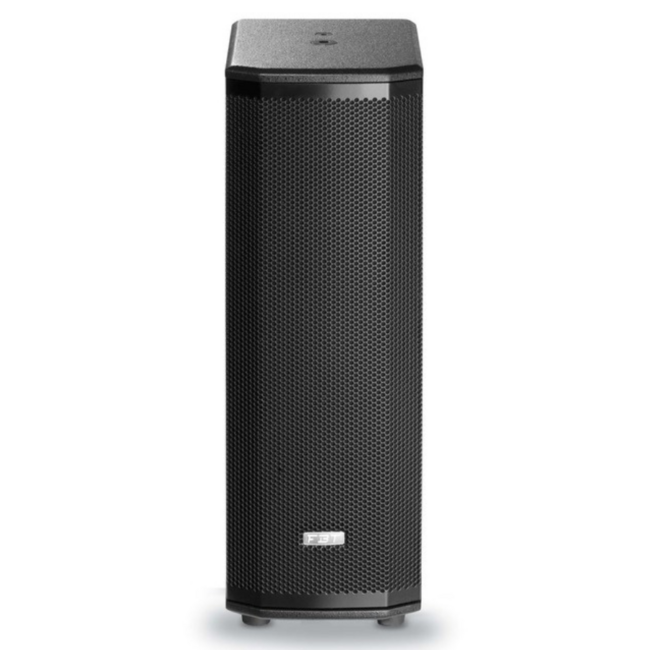

VENTIS 206 A
The VENTIS 206 and 206A can be deployed as a front fill, an under-balcony fill or as a main providing pristine speech intelligibility or simply as the full-range companion of a subwoofer. Constructed in 12mm birch plywood, the 206 and 206a has an integrat Read more
The VENTIS 206 and 206A can be deployed as a front fill, an under-balcony fill or as a main providing pristine speech intelligibility or simply as the full-range companion of a subwoofer. Constructed in 12mm birch plywood, the 206 and 206a has an integrated rear handle, an optional mounting bracket and, most importantly, an astonishing size to SPL ratio.
The enclosures are as suitable for fixed installation as they are for use on the stage.
M10 mounting points are included as standard while an optional U-bracket can be used for wall-mounting.
For use on the road, the VENTIS models include aluminum handles with rubber inserts, and a 35mm polemount socket.
The FBT VENTIS range offers powerful DSP with 6 versatile presets. Crafted by expert FBT engineers, the presets offer a performance for every requirement.
ORIGINAL / LIVE - The renowned, smooth FBT sound
VOCAL - A special EQ setting to maximise speech intelligibility
DJ - Designed to keep the energy high and your audience dancing
TOURING - The reliability and the roar of the industry’s most popular touring systems
LOUDNESS - The ultimate preset for listening at a medium or low volume
WARM - A special setting to emphasise full-bodied, low-mid frequencies.
2-way, bi-amplified, bass reflex design
Biamped: 700W RMS LF and 200W RMS HF power amplifiers in Class D for LF and in Class H/AB for HF
Digital Signal Processor with graphic display
15 mm (0.59”) birch plywood scratch resistant enclosure and internal bracing
High efficiency switch mode power supply
Control Panel features balanced XLR/Jack input, XLR LINK OUT, 2 x Volume, RCA Stereo input, DSP display with rotative encoder and push
2x165mm (6.5”) LF woofer with 38mm (1.5”) voice coil, custom made for FBT
25mm (1”) exit throat B&C HF compression driver with 36mm (1.4”) voice coil
Frequency response from 70Hz to 20 kHz
70°H x 50°V Constant Directivity Rotatable Horn
Wall bracket mount thread, 35mm (1 3/8”) top-hat
One integrated handle
12mm (0.47”) birch plywood scratch resistant enclosure and internal bracing
Power cord: 5m
Net Dimension (WxHxD): 190 x 560 x 260mm
Net Weight: 12.3kg
Transport Dimension (WxHxD): 290 x 660 x 360mm
Transport Weight: 14.3kg
Configuration: 2 Way
Built in amplifier: 900w (700w LF + 200w HF)
Built in amplifier peak: 1800w (1400w LF + 400w HF)
Frequency Response: 70Hz - 20kHz -6dB
Low Frequency Woofer: 2x 6.5
High Frequency driver: 1
Maximum SPL continuous/peak: 124/131dB
Dispersion (HxV): 70? x 50? rotatable
Input Impedance: 22kOhm
AC power requirements: 640VA
Input Connector: XLR/Jack Combo socket with XLR link out, RCA stereo input
