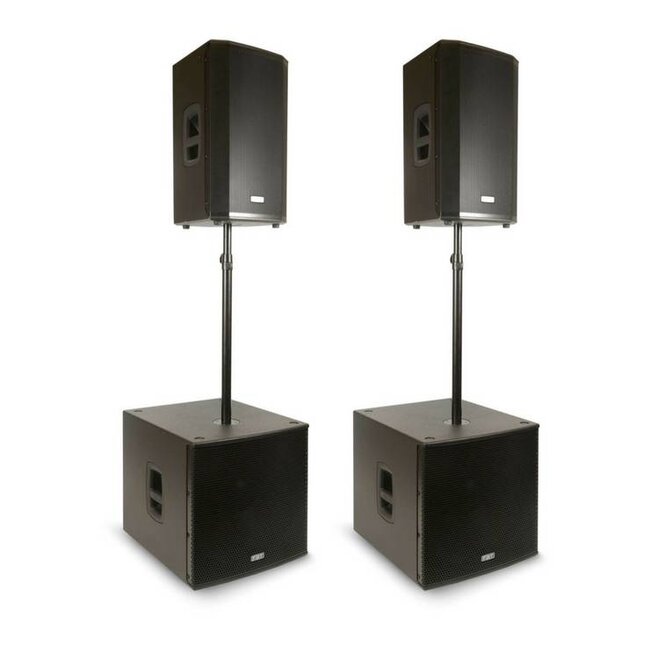

FBT VN4000 System comes complete with the Ventis 112A 700W + 200W RMS 133dB SPL processed active speakers which feature B&C compression drivers and FBT's own custom, long excursion woofers, two-way, bass reflex designs housed in 15mm birch plywood. A full-grille design backed by specially treated acoustic cloth delivers the characteristic style for which FBT is known, while fully rotatable constant directivity horns ensure accurate coverage.
The Ventis 110A is suitable for fixed installation as they are for use on the stage. M10 points are included as standard while an optional U-bracket can be used for wall-mounting. For use on the road, the VENTIS models include aluminum handles with rubber inserts, a 35mm polemount socket, and a 45° sloped profile for unobtrusive placement on-stage as a monitor.
Power for the active VENTIS models comes courtesy of a specially designed, Italian made switching mode amplifier module. Low frequencies are driven by a highly efficient 700W RMS (full bridge) Class-D topology, operating with extremely low THD. For the HF stage, a 200W RMS performance is delivered via a meticulously crafted Class-H / AB design.
Finally, DSP on-board the VENTIS 112A enclosure is both user friendly and powerful. Located on the rear of the enclosure, a menu-driven system is navigated via a single rotary control with push-to-select functionality. A total of 6 pre-optimised settings are available, plus 2 further slots for users to form their own designs, using 5 parametric equalizers per slot. Also available is a high-pass filter, a mic/line selector, low, mid and high tone settings and an optional delay of between 0 and 3.5 metres. Finally, users can exclusively choose between two limiter modes, MAX-SPL or MAX-QUALITY, to best suit their performance.
The VN4000 System also comes with the Subline 118SA 1200W RMS 134/137dB SPL processed active supwoofer created with the aim to maximize SPL/SIZE ratio, they have Class D amplifiers, switch mode power supply and Digital Signal Processor with presets to match any other FBT speaker.
With IN/OUT stereo connectors, it is possible to use only one subwoofer with Left and Right speakers
Optional wheels, ergonomic integrated carrying handles and tour-grade plywood cabinets allow an easy transport
Also included in this package are a pair of connecting poles and all connecting cables.
VENTIS 112A KEY FEATURES:
2-way, bi-amplified, bass reflex design
Biamped: 700W RMS LF and 200W RMS HF power amplifiers in Class D for LF and in Class H/AB for HF
Digital Signal Processor with graphic display
15 mm (0.59") birch plywood scratch resistant enclosure and internal bracing
High efficiency switch mode power supply
Control Panel features balanced XLR/Jack input, XLR LINK OUT, 2 x Volume, RCA Stereo input, DSP display with rotative encoder and push
320mm (12") LF woofer with 64mm (2.5") voice coil, custom made for FBT
25mm (1") exit throat B&C HF compression driver with 36mm (1.4") voice coil
Frequency response from 48Hz to 20 kHz
80°H x 50°V Constant Directivity Rotatable Horn
6 x M10 suspension points, optional wall bracket mount thread, 35mm (1 3/8") top-hat
Speaker stand socket, two aluminium handles
45° monitor taper
SUBLINE 118SA KEY FEATURES:
Bass-reflex design subwoofer
460 mm (18") high excursion woofer with 75 mm (3") voice coil, custom made for FBT by B&C
Frequency response from 33Hz - 100Hz
1200W RMS Class D power amplifier with switch mode power supply
Digital Signal Processor with 6 presets, 4 equalization with 2 LPF Crossover Settings, 6 step digital delay line up to 3.5m
Control Panel with Stereo XLR in/outs, Volume, EQ Presets, Delay, Phase Reversal Switch 0°-180°, 3 status LED indicators
15 mm (0.59") birch plywood scratch resistant enclosure with internal bracing
M20 (20mm) top mount speaker stand socket and two aluminum ergonomic FBT handles
