Extended frequency response and dynamic range for cleaner and smoother sound. Read more.

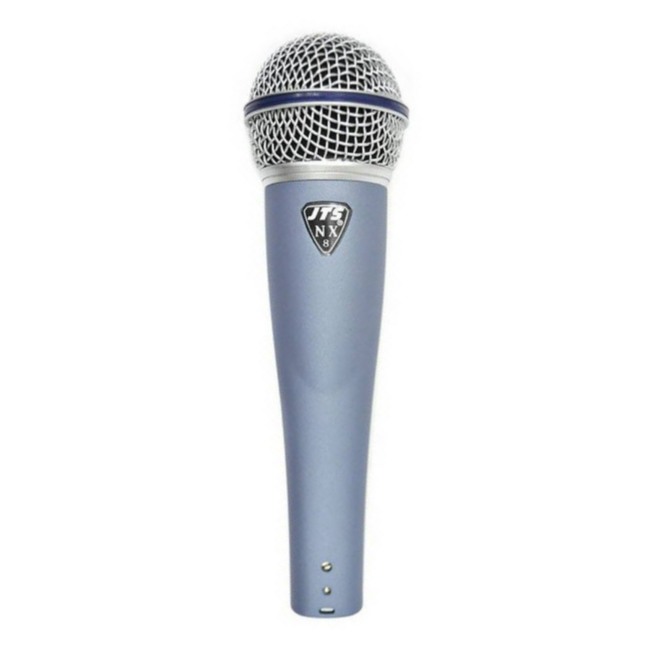

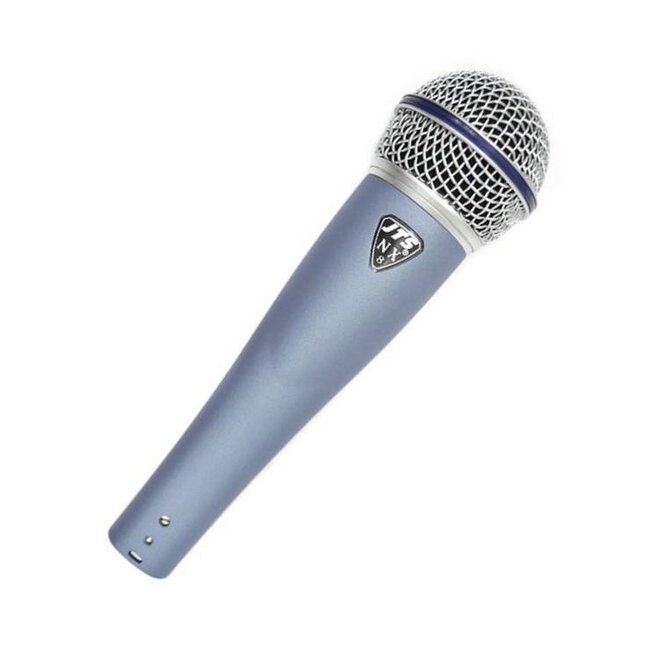

Based on the success of X-series performance microphones NX-8/NX-8S reenhance overall performance. NX-8/NX-8S provide extended frequency response and dynamic range for cleaner and smoother sound. The shock mount keeps handling noise to extremely low level. Reinforced cartridge and hardened grille make NX-8/NX-8S one of the most rugged mics in the professional microphone industry.
| NX-8 | |
| Type | Moving Coil Dynamic |
| Frequency Response | 50~16,500 Hz |
| Polar Pattern | Cardioid,rotationally symmetrical about microphone axis, uniform with frequency |
| Sensitivity(at 1,000Hz) | -72dB*(0.25mV)*0dB=1V/μbar |
| Impedance | 600Ω |
| Phasing | Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3 |
| Connector | Three-pin professional audio connector (male XLR type) |
| Case. | Metallic enamel-painted die cast metal body with hardened, matte-finished steel grille |
| Net Weight | 245 grams (8.6 oz) |
