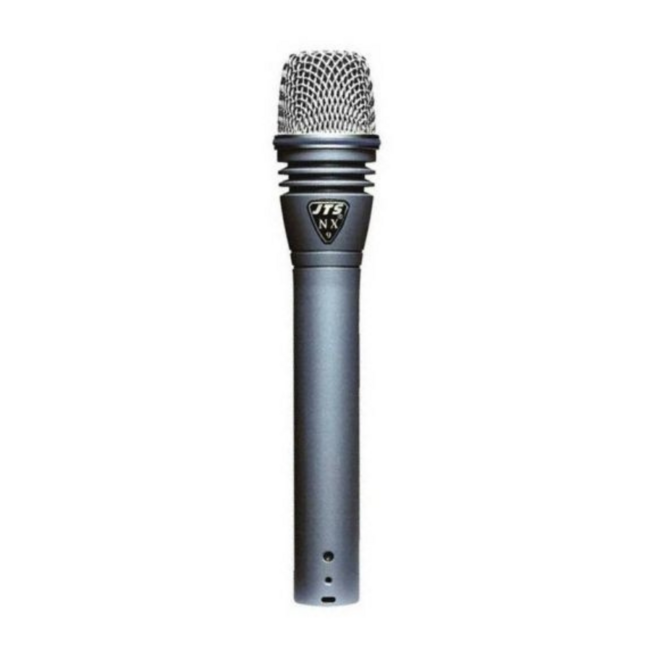

The NX-9 is innovated for overheads, hi-hat, acoustic guitar and other instruments. The NX-9 provides extended frequency response and enlarged dynamic range. It delivers smooth and transparent reproduction. Read more.
| Type | Electret Condenser |
| Frequency Response | 60~18,000 Hz |
| Polar Pattern | Cardioid,rotationally symmetrical about microphone axis, uniform with frequency |
| Sensitivity(at 1,000Hz) | -70dB*(0.32mV)*0dB=1V/μbar |
| Output Impedance | 400Ω |
| Phasing | Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3 |
| Connector | Three-pin professional audio connector (male XLR type) |
| Case | Metallic enamel-painted die cast metal body with hardened, matte-finished steel grille |
| Net Weight | 230 grams (8.1 oz) |
| Touch Noise. | Super low |
| Power Supply | 9-52V phantom power or battery 1.5V AA |
