NUX B-7 Pro In-Ear Monitoring System
£299.00 Incl. tax
Add to cart
NUX B-7 Pro In-Ear Monitoring System
NUX
NUX

NUX B-7 Pro In-Ear Monitoring System

£299.00 Incl. tax
In stock

B-7 Pro is a professional wireless in-ear monitoring system operating in the 2.4GHz band. Read more.

  • Free Shipping on orders over £150
  • Established 1976
  • Part exchange Welcome
  • Finance Available

Product description

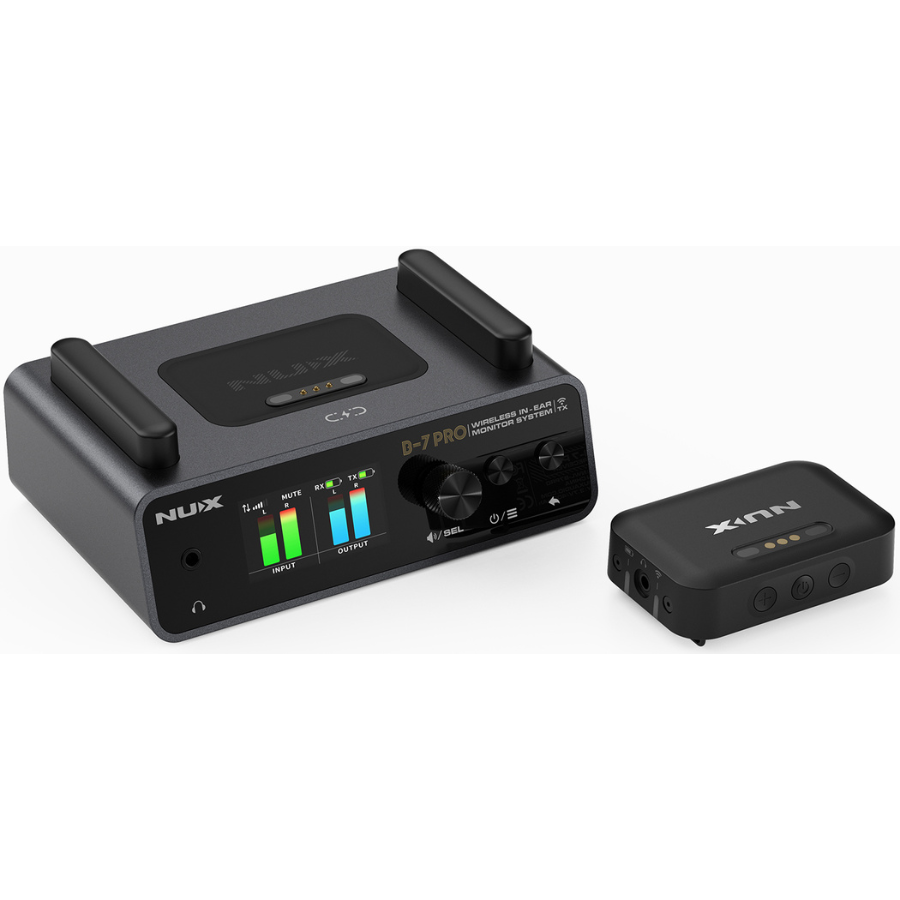

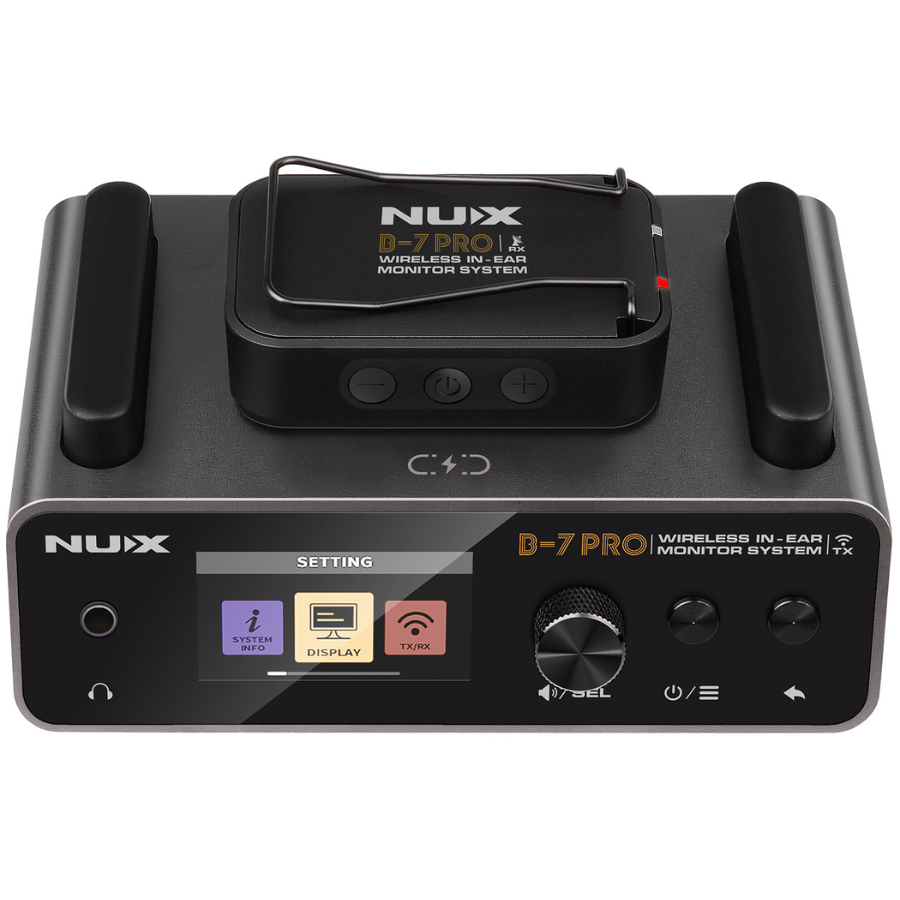

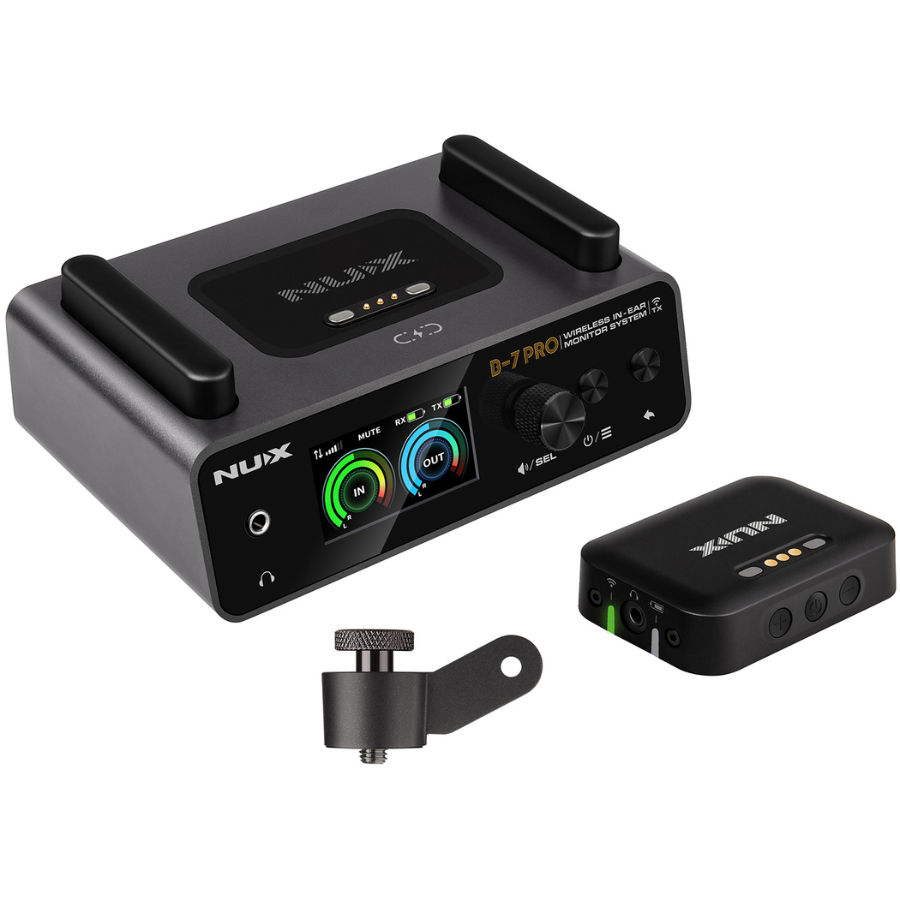

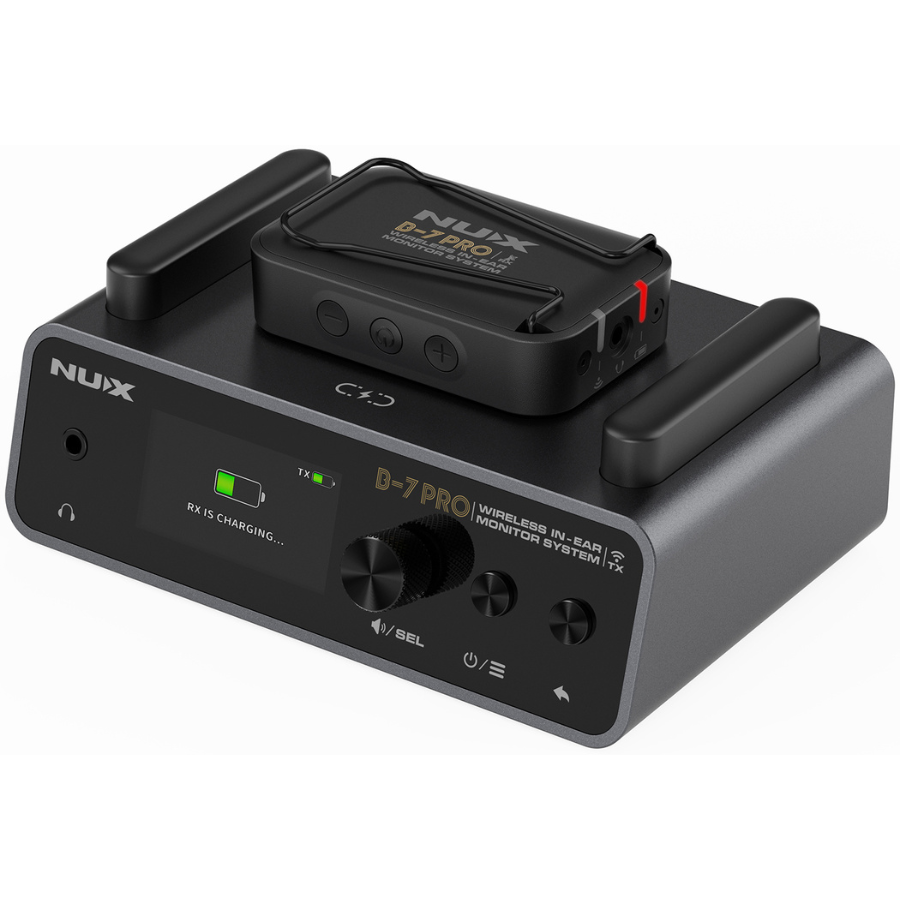

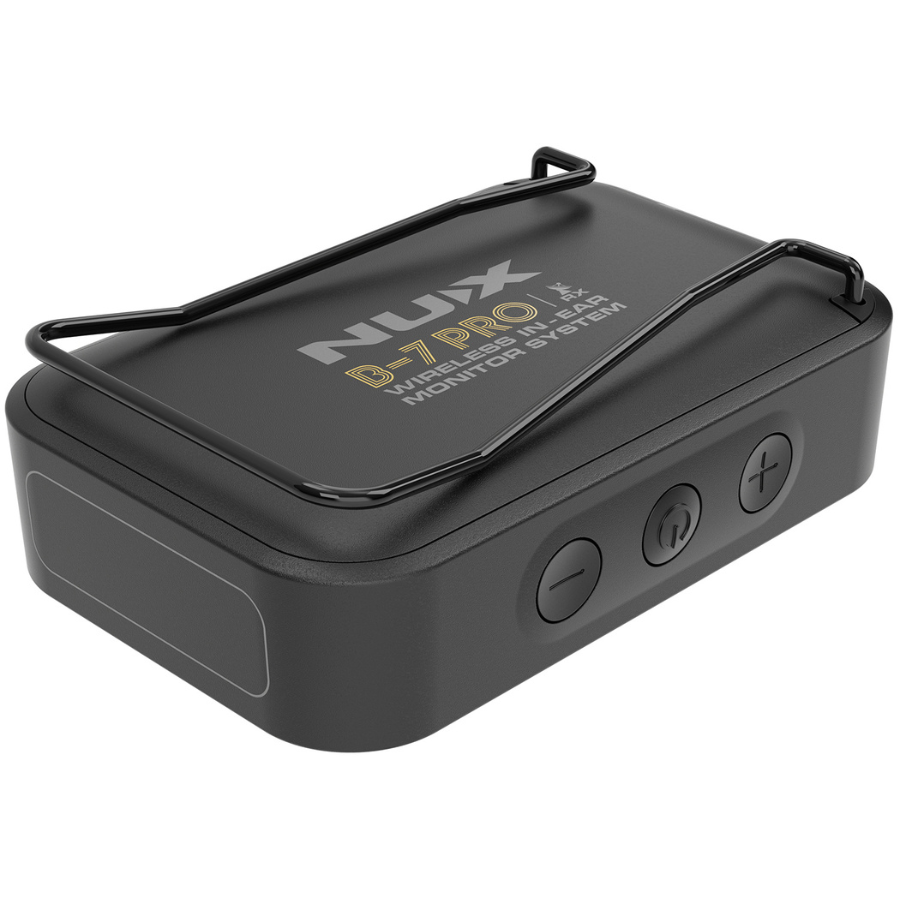

B-7 Pro is a professional wireless in-ear monitoring system operating in the 2.4GHz band. A fully digital signal path delivers high quality stereo audio with minimal latency and a range of up to 50m. The receiver (RX) can be clip-mounted to clothing or a guitar strap and can be re-charged from the main transmitter (TX) or via USB-C. The TX is itself rechargeable or can operate directly from the supplied 9Vdc power adaptor and can even double as a USB audio interface for recording to a PC or Mac computer. Onboard the TX is a full colour display showing signal and battery status for both TX and RX units and serves a settings menu for adjusting signal levels, display and transmission preferences. In addition to balanced left & right signal inputs, there is a stereo Aux input and a wired Phones output. A screw adaptor is also provided to enable the transmitter to connect with standard action camera clamps if preferred for mounting to a stand or fixture. In summary, the B-7 Pro offers the latest wireless technology with unique features to deliver reliable high-quality monitoring for even the most demanding of performers.

  • Internal rechargeable batteries (TX and RX)
  • Up to 6 hours operation per charge
  • 3 settings for latency vs stability
  • Automatic pairing procedure
  • Power supply 9Vdc 1200mA (adaptor supplied)
  • Batteries Li-polymer 3.7V 3000mAh (TX), 400mAh (Rx)

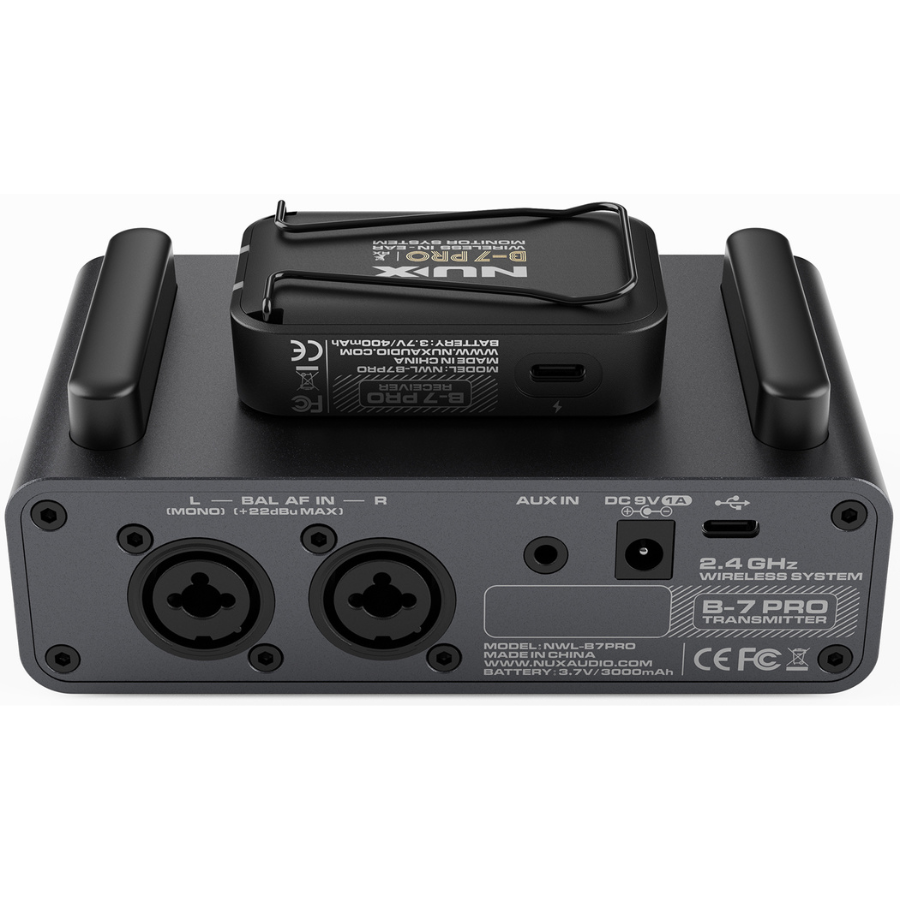

  • Connections: Transmitter L+R XLR/jack, Aux 3.5mm, Phones 3.5mm, USB-C (data), DC jack
  • Connections: beltpack receiver Headphones out 3.5mm (13ohm min.), USB-C (charge)
  • Carrier frequencies 2400-2483.5MHz (frequency hopping)
  • RF output power 10mW E.I.R.P max.
  • Range 50m max.
  • Sampling format 24-bit, 48kHz
  • Frequency response 20Hz - 20kHz
  • Latency 7.33 - 10.85 - 14.33ms (fast-default-safe modes)
  • Input impedance 20k Ohm balanced, 10k Ohm unbalanced
  • Input level 9.8Vrms (22dBu) max.
  • Auxiliary input 2.1Vrms (8.7dBu) max.
  • Headphone : impedance 13 Ohms min.
  • Headphone output 57mW max. per channel (THD >1%, 16 Ohm, 1kHz)
  • Channel separation -105dB
  • THD <0.01% typical
  • Dynamic range 110dB (A-weighted)
  • Output level -86dB to +12dB (adjustable + mute)
  • Auto power off 10min with no connection
  • Dimensions : transmitter 140 x 97 x 53mm
  • Weight : transmitte r525g
  • Dimensions : receiver 47 x 71 x 22mm
  • Weight : receiver 51g

Specifications

Article number
00446969
SKU
171.827UK
