Chord Passive DI Box

Article code 00357838
£19.95
call 0116 254 5456 for availability

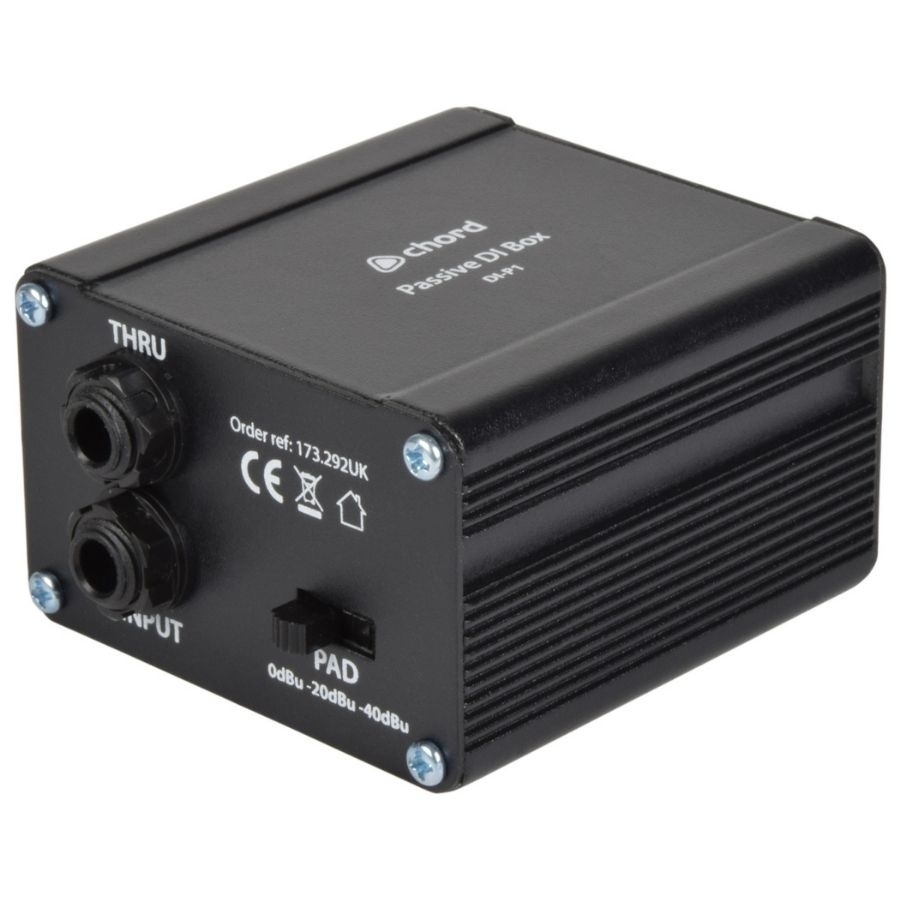

Passive DI box for converting high impedance instrument outputs to low impedance line signals for feeding directly into a mixing console. Read more

Add to cart
Product description
Description

Passive DI box for converting high impedance instrument outputs to low impedance line signals for feeding directly into a mixing console. Equipped with 3 pad settings, RF/mains filter and selector ...

  • Ground float option for ground lift with RF/mains filter
  • Ground lift option isolates signal ground without filter
  • 3 pad settings for level matching

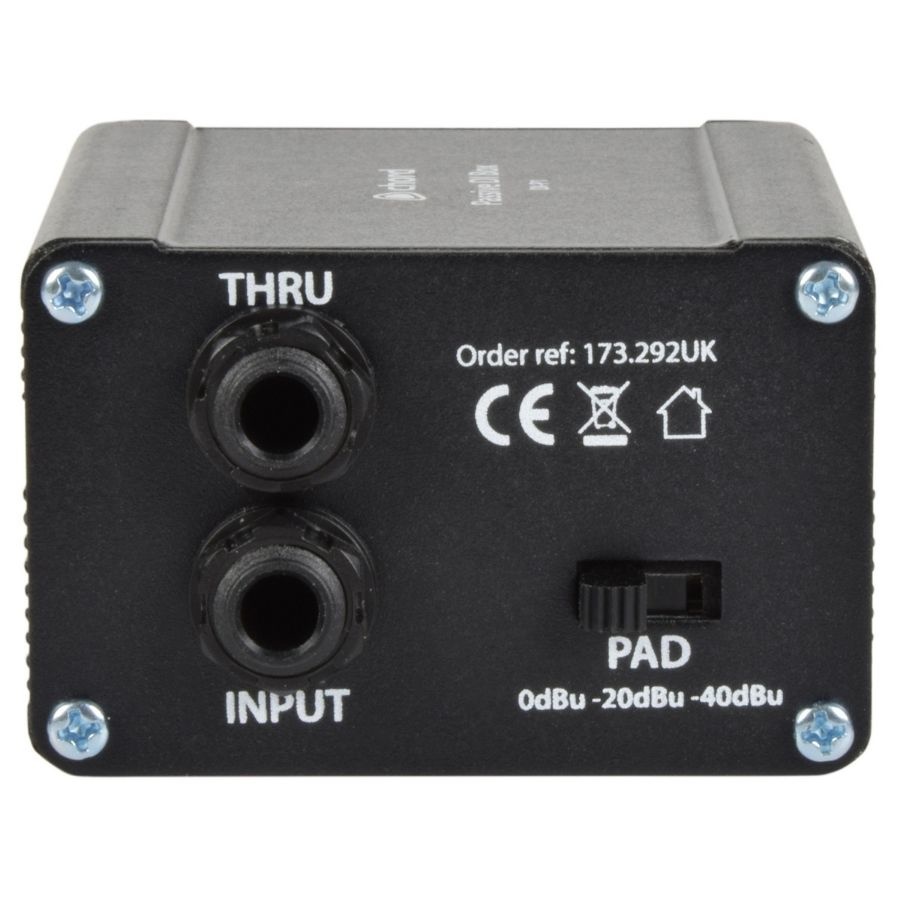

  • Input6.3mm jack (unbalanced)

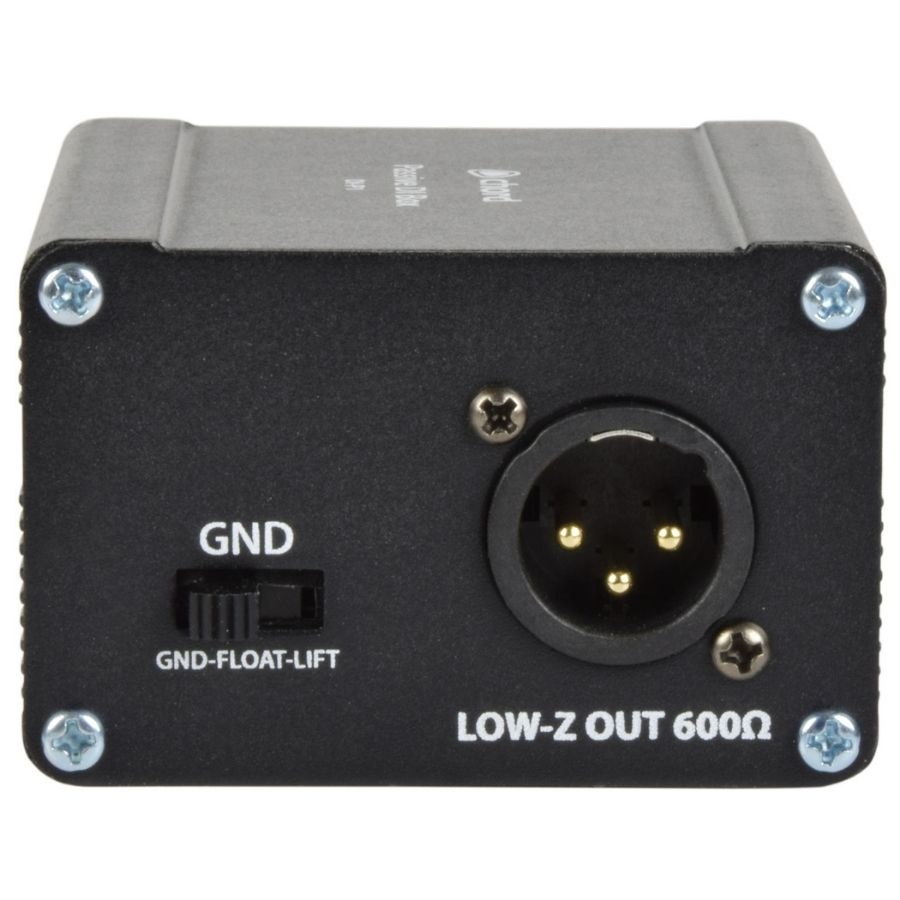

  • OutputsXLRM (balanced), 6.3mm jack through (unbalanced)
  • Input impedance>100k Ohms
  • Output impedance600 Ohms
  • Controls0/-20/-40dBu pad & Ground-Float-Lift switch

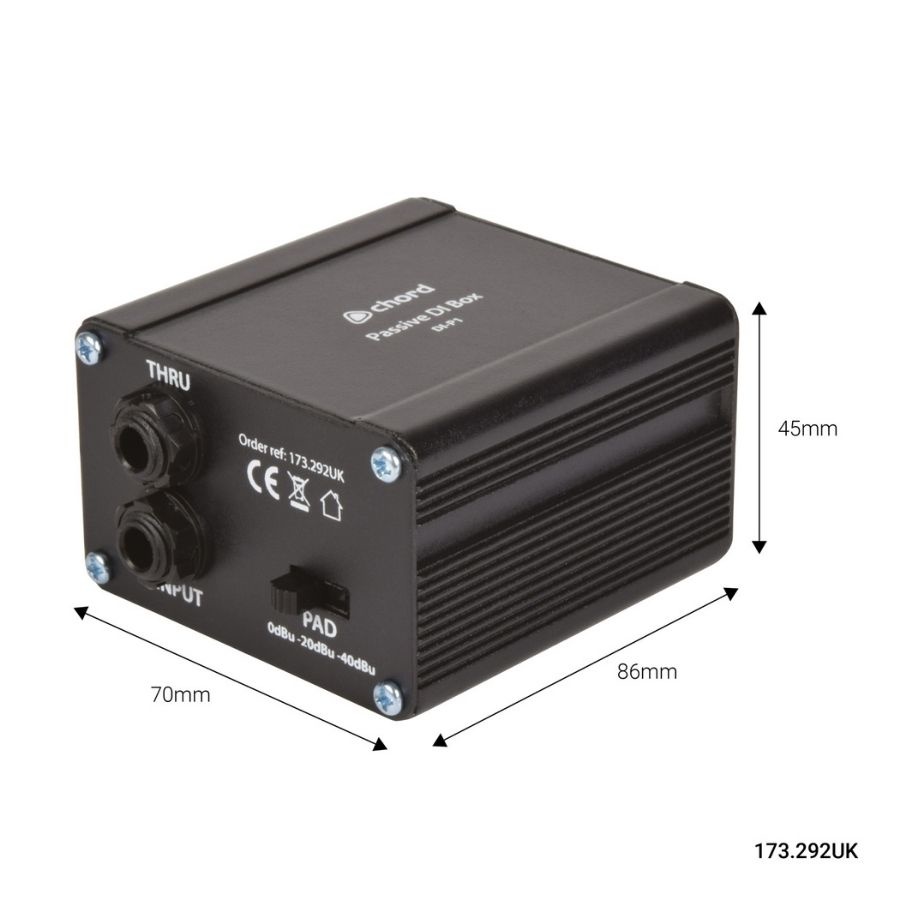

  • Dimensions86 x 70 x 45mm
  • Weight234g
