Citronic have re-invented themselves with there new range of quality power amps . The PPX range of amps were used heavily during the late 80’s and early 90’s in clubs up and down the country due to the reliability and quality of sound reproduction. tHE PLX range will live up to all expectations .

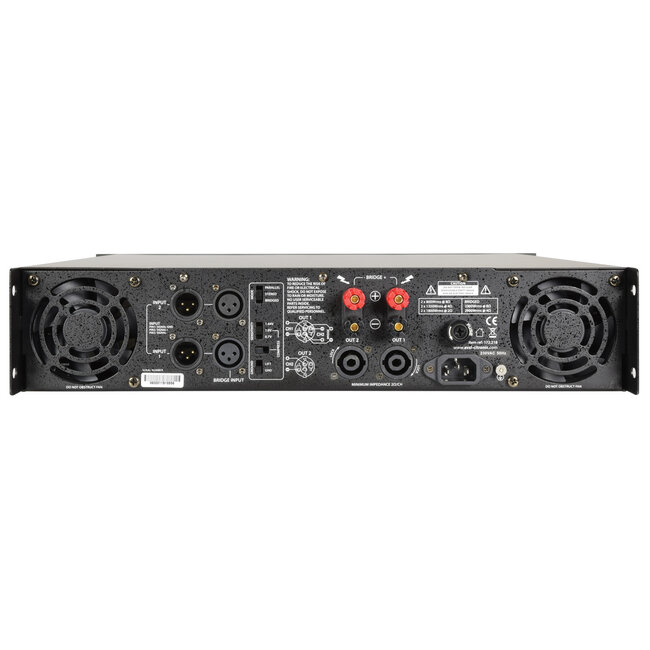

19″ rackmount 2U power amplifiers with dual fan cooling and class H architecture for safe, reliable power delivery. Balanced inputs via 6.3mm jack or XLR sockets, speaker outputs on 2 SPK connectors or 4mm binding posts. High power output stable down to 2 Ohms load per side can also be bridg,ed mono to 4 Ohms. Switchable ground lift, bridge mode and clip limiter.

FEATURES

•Bridge mode for high power mono operation

•Output stable down to 2 Ohms
•Removable handles for low profile install
•Switchable clip limiter

SPECS

Power supply 240Vac, 50Hz (IEC)
Controls Level channel 1, level channel 2, ground, mode, clip limiter
Input impedance 20k ohms
Frequency response 5Hz – 50kHz
Total harmonic distortion 0.05%
Slew rate 40V/us
Damping factor >400
Protection Short-circuit, overload, D.C. and thermal protect
Dimensions 482 x 453 x 88mm (2U)

Output power 2 x 1800Wrms @2 ohms
Power RMS @ 2 Ohms 2 x 1800W
Power RMS @ 4 Ohms 2 x 1350W
Power RMS @ 8 Ohms 2 x 800W
Power RMS bridge @ 4 Ohms 2900W
Power RMS bridge @ 8 ohms 2300W
Weight 26.0kg
