Description

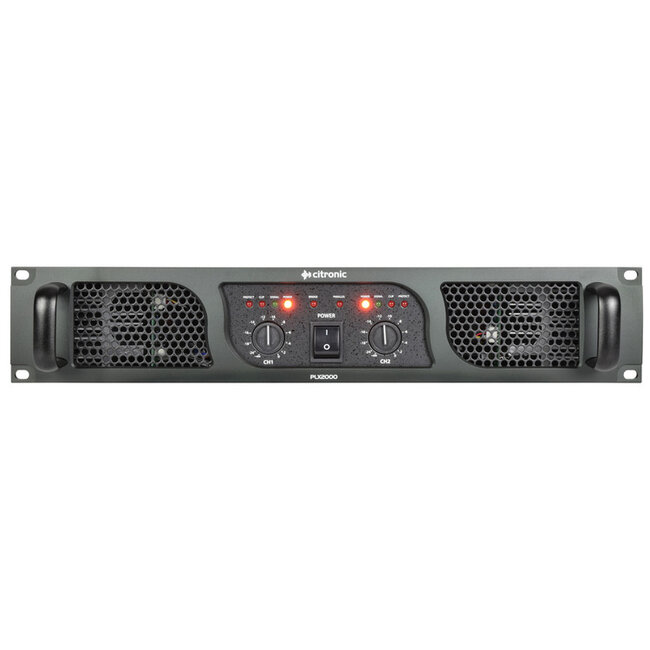

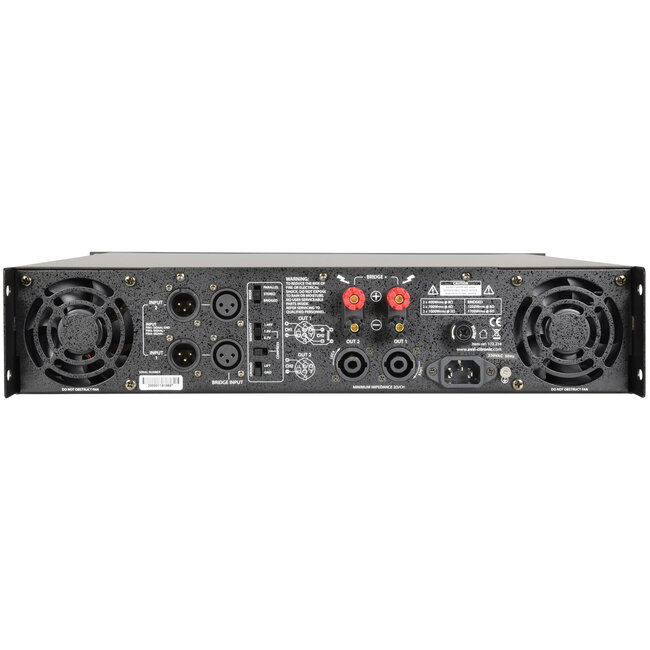

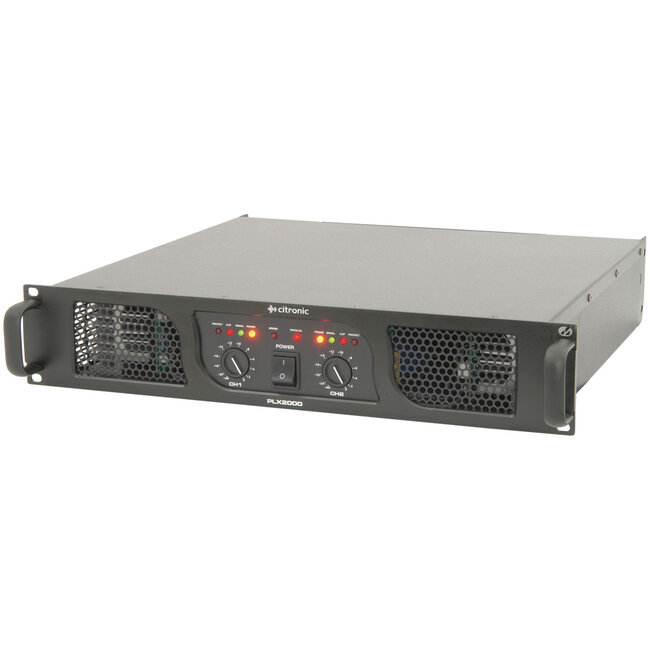

19" rackmount 2U power amplifiers with dual fan cooling and class H architecture for safe, reliable power delivery. Balanced inputs via 6.3mm jack or XLR sockets, speaker outputs on 2 SPK connectors or 4mm binding posts. High power output stable down to 2 Ohms load per side can also be bridged mono to 4 Ohms. Switchable ground lift, bridge mode and clip limiter.

Features
Bridge mode for high power mono operation
Output stable down to 2 Ohms
Removable handles for low profile install
Switchable clip limiter

Specifications
Power supply230Vac, 50Hz (IEC)
ControlsLevel channel 1, level channel 2, ground, mode, clip limiter
Input impedance20k ohms
Frequency response5Hz - 50kHz
Total harmonic distortion0.05%
Slew rate40V/us
Damping factor>400
ProtectionShort-circuit, overload, D.C. and thermal protect
Dimensions482 x 453 x 88mm (2U)
