Citronic QP1600 4 x 400W Quad Power Amplifier

The Citronic QP-Series Quad Power Amplifiers are designed to deliver high-quality, reliable sound for multi-speaker PA systems. Thanks to dual fan cooling, the QP Power Amplifiers can be used for long durations of time.

The Citronic QP Amplifiers can be used as 2 stereo amplifiers, a stereo sub + stereo mid-tops amplifier or a 4-zone mono system.

These cost-effective, efficient amplifiers are perfect for a wide range of environments such as bars, clubs, live music venues, theatres, gyms, dance studios etc.

High-power Output

The Citronic QP1600 has a powerful output of 4 x 200W @ 8 Ohms, 4 x 300W @ 4 Ohms, and 4 x 400W @ 2 Ohms.

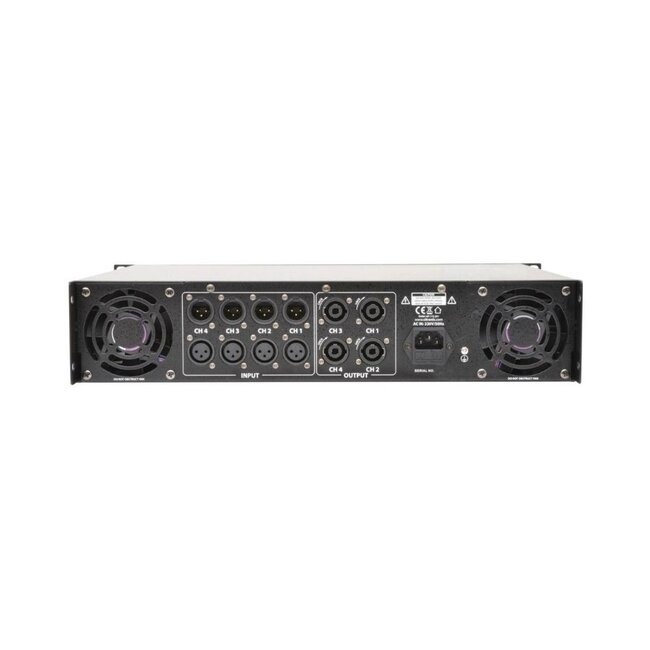

Each channel output is on Speakon (SPK) connections.

Inputs

Each channel has balanced XLR inputs ensuring a strong signal is carried across from mixing desks and PA systems.

All 4 channels are fully independent and have individual volume control.

Overload Protection

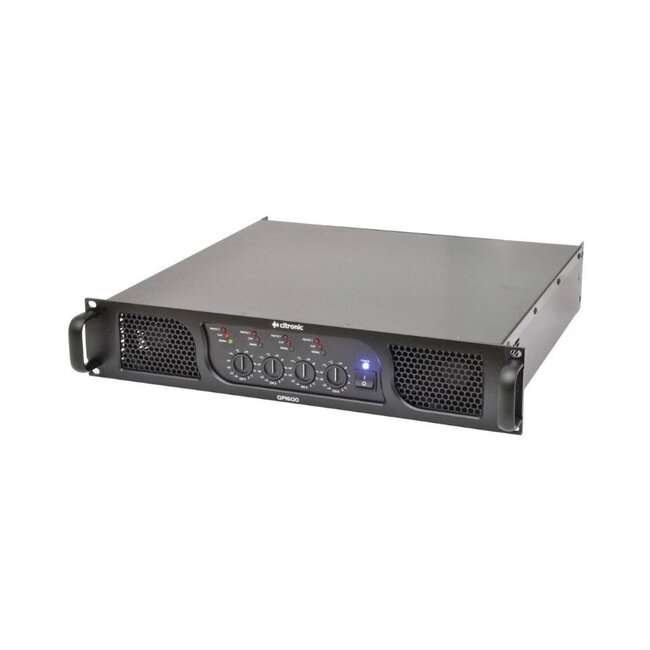

During use, green “SIGNAL” LEDs will illuminate to show when a signal is present and red LED “CLIP” LEDs illuminate if the output is reaching clip level. If the red CLIP LEDs illuminate more than very briefly, reduce the volume until they hardly light up at all.

If the internal protection circuitry detects a fault in the speakers or amp, the channel(s) will enter Protect Mode and red “PROTECT” LEDs will illuminate on the front panel to show this. Switch the amplifier off and check the entire system (including leads) before powering up again. If still in Protect Mode, seek advice from qualified service personnel.
