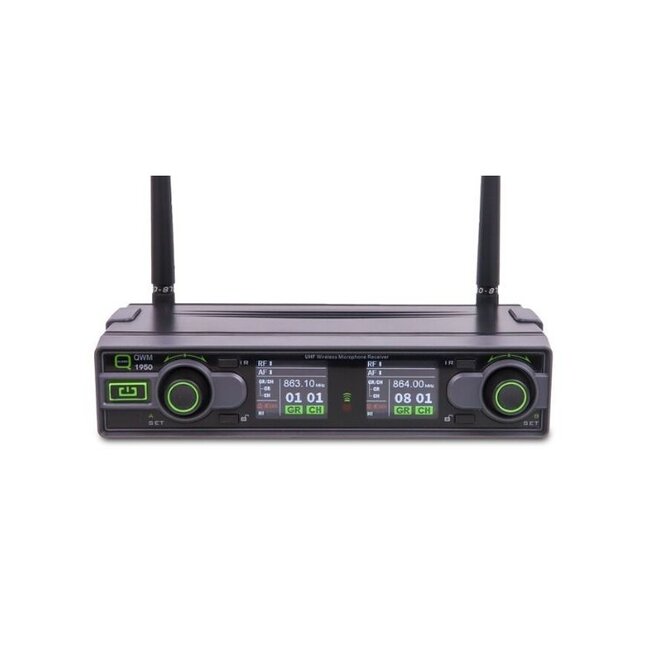

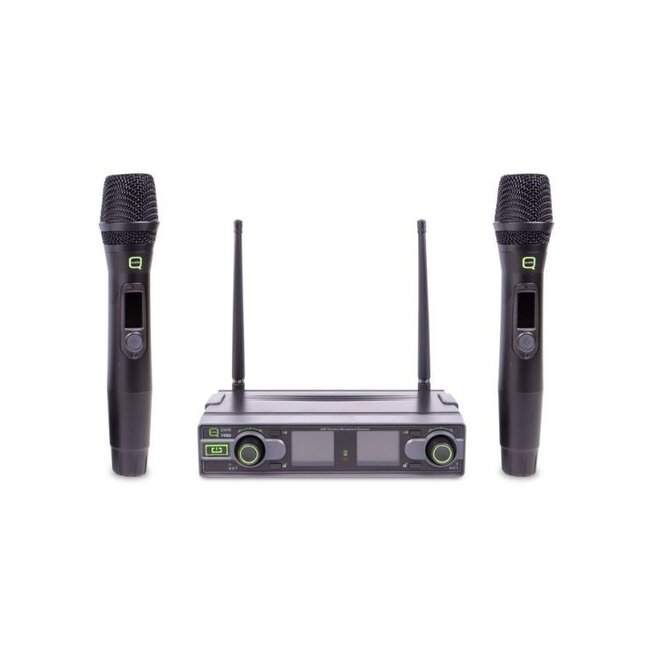

UHF dual channel wireless microphone system, supplied with 2x handheld microphone transmitters
Multi-Channel UHF Wireless System
Channel 38 (606.5 – 613.5 MHz)
Two Transmitter Options (Dual HH or HH + BP)IR Transmitter Syncing
Auto Frequency Scan Feature
Supplied In A Rugged ABS Carry Case
Rack Mountable using the QWM1960 Rack Kits (Antennas on the QWM1950 ARE NOT removable)
PRODUCT DESCRIPTION
1x Receiver
2x Handheld Transmitters
Wireless Channel/Frequency options:
– Channel 38 (606.5-613.5 MHz)
Frequency response
30Hz 20kHz ±2dB
Battery
2×1.5V AA batteries
Bandwidth
2MHz or 8MHz
Power Supply
DC 12V 1A
Frequency Range
606.5 613.5 MHz (Channel 38)

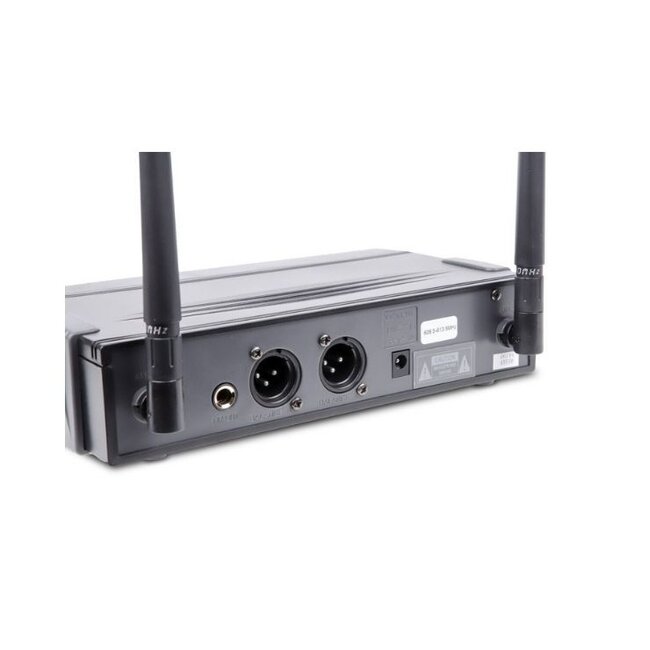

Audio Outputs
1x Mixed Unbalanced 6.3mm Jack, 2x Balanced XLR
Dynamic range
90dB
Battery Life
>6h
Signal To Noise Ratio
90dB
Distortion
<0.5%
The total harmonic distortion
<-50dBc
