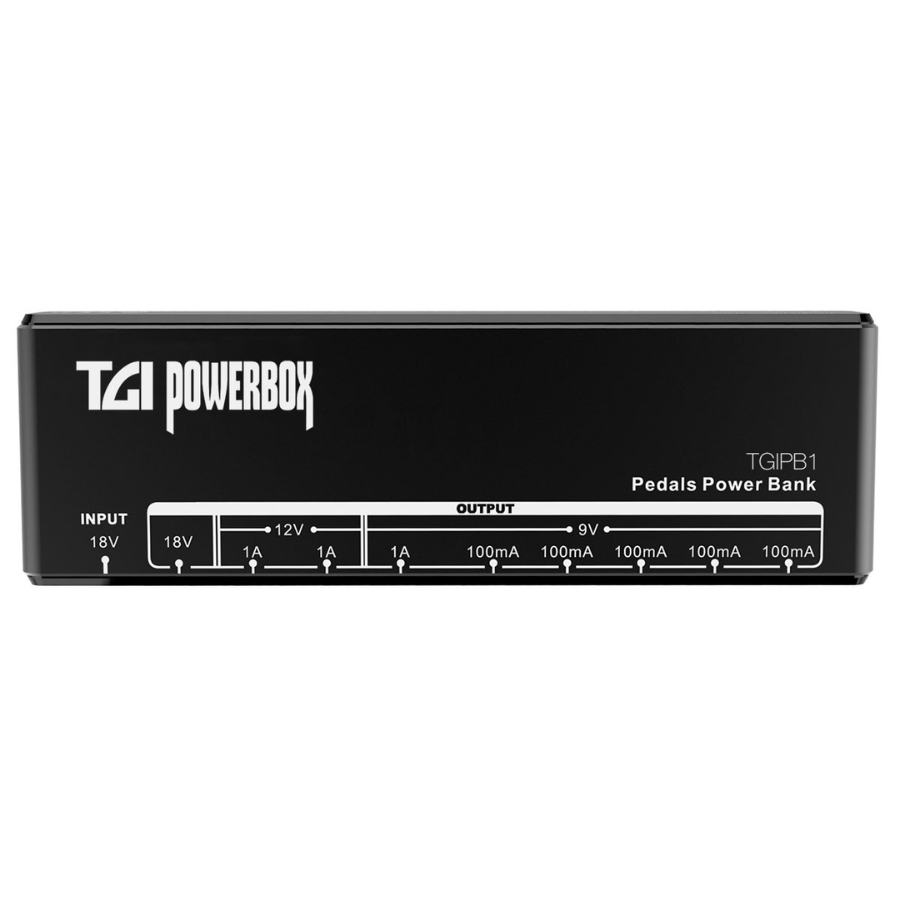

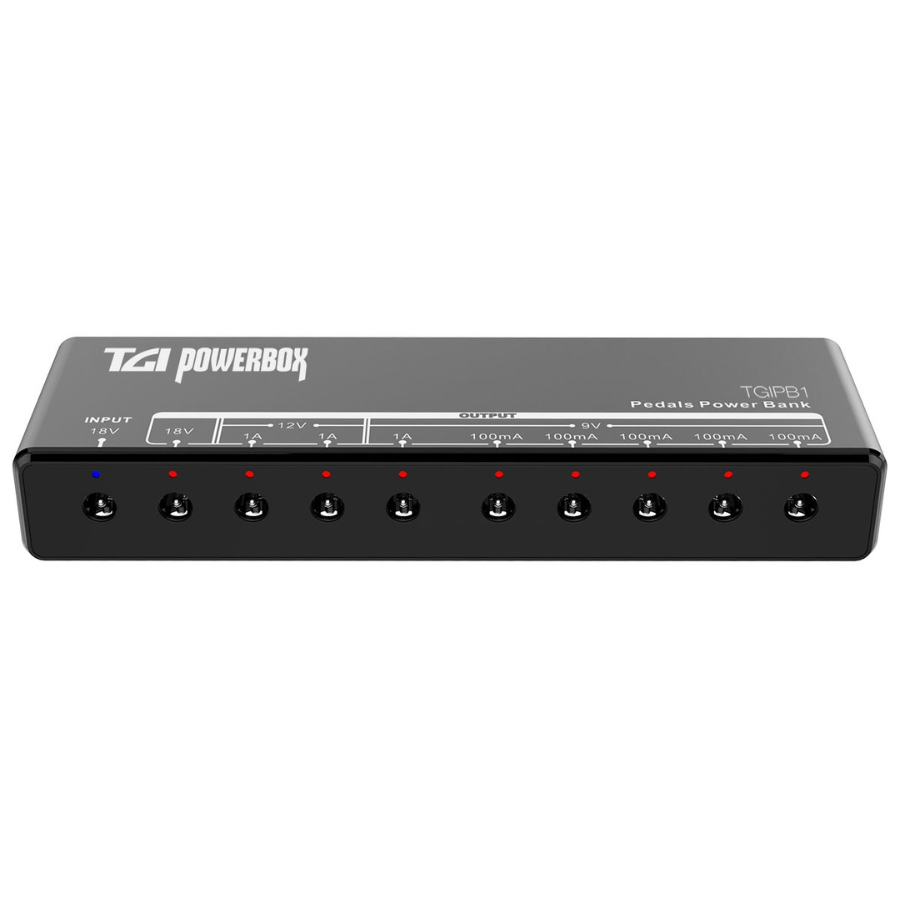

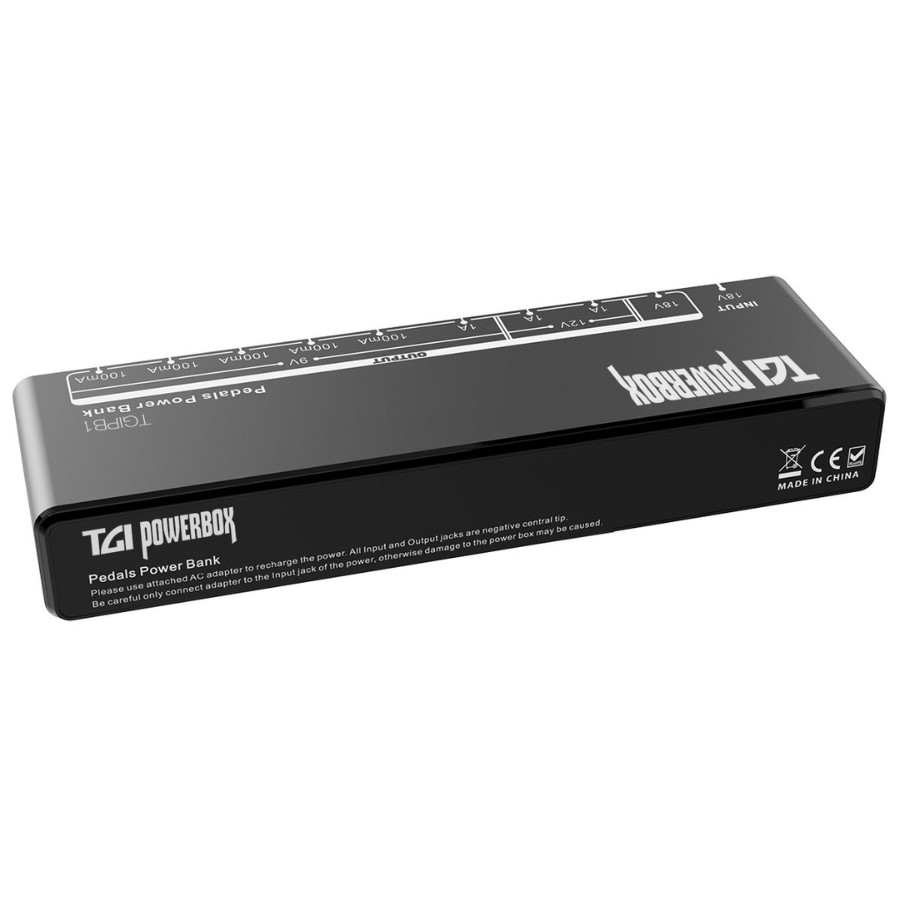

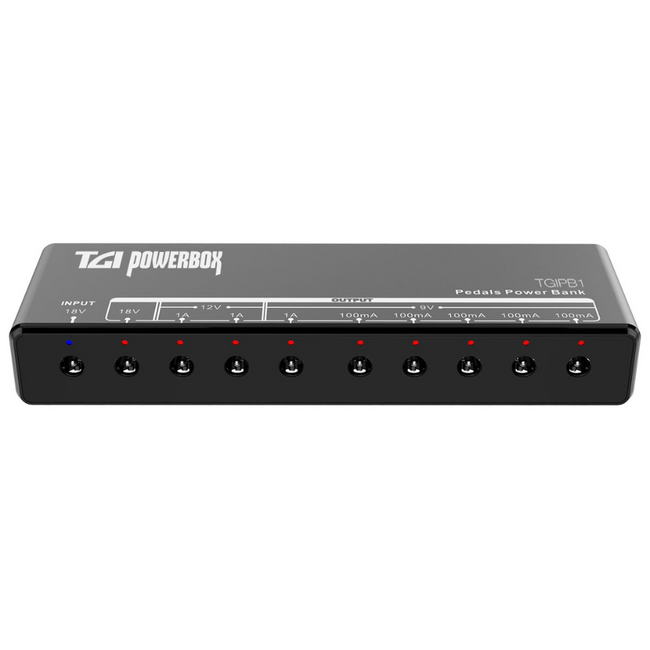

TGI Power Box Micro Power Supply TGIPB1

The TGI Power Box TGIPB1 is a compact yet powerful multi-output power supply designed for guitar and effects pedalboards. With up to 10 isolated DC outputs, it offers clean, reliable power for your entire setup — drastically reducing noise and hum often introduced by chained power supplies. It features dedicated 9 V, 12 V and 18 V outputs for maximum flexibility, short-circuit and overload protection for safety, and a sturdy aluminium housing that fits neatly onto or under your pedalboard. Whether you’re gigging, recording or practising, the TGIPB1 delivers professional-level power management at a smart price.

Model: TGIPB1
Type: Multi-Output Isolated DC Power Supply for Pedals
Outputs:
- 1 × 18 V DC isolated output
- 2 × 12 V DC isolated outputs
- 8 × 9 V DC isolated outputs (one rated at 1 A, others at 100 mA)
Protection: Short circuit & overload protection on each output
Construction: Aluminium case
Indicators: Power LED + Blue LEDs per output channel (switchable)
Included Accessories:
- AC-DC Adapter (Mains supply)
- 10 output cables (one per channel)
- Daisy-chain cable
- Inverse-polarity cable (for compatibility)
Dimensions: Approx. 160 mm × 50 mm × 24 mm (varying by source)
Weight: Approx. 280 g (varies by source)
Finish: Natural Aluminium
Special Features:
- Fully isolated outputs minimise noise & hum
- Compact, pedalboard-friendly size
- Switchable indicator LEDs per channel

Key Highlights – TGI Power Box TGIPB1

• 10 isolated DC outputs give you full flexibility for a wide range of pedals (9 V/12 V/18 V)

• Noise-free performance thanks to fully isolated channels — ideal for pedalboards

• Compact and robust aluminium housing designed for tight spaces and mobile setups

• Safety first with built-in short-circuit and overload protection per output

• Pedalboard-ready — fits under or alongside your board, with included cables and mains adapter
