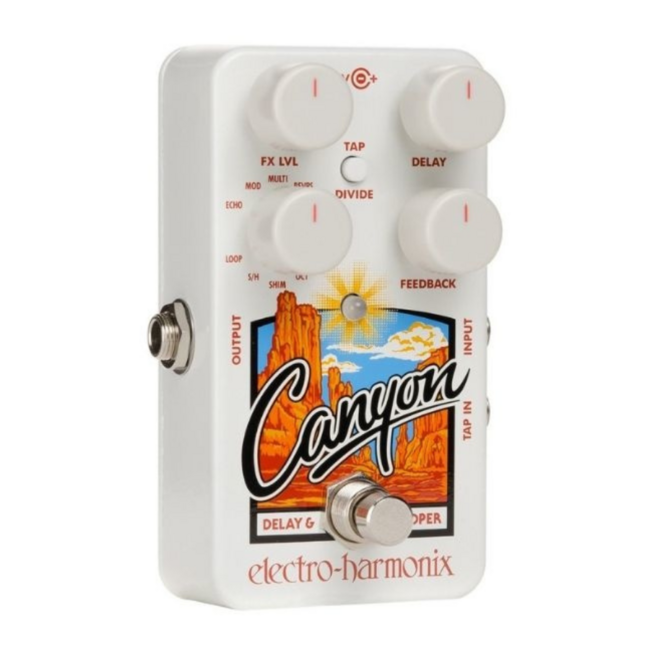

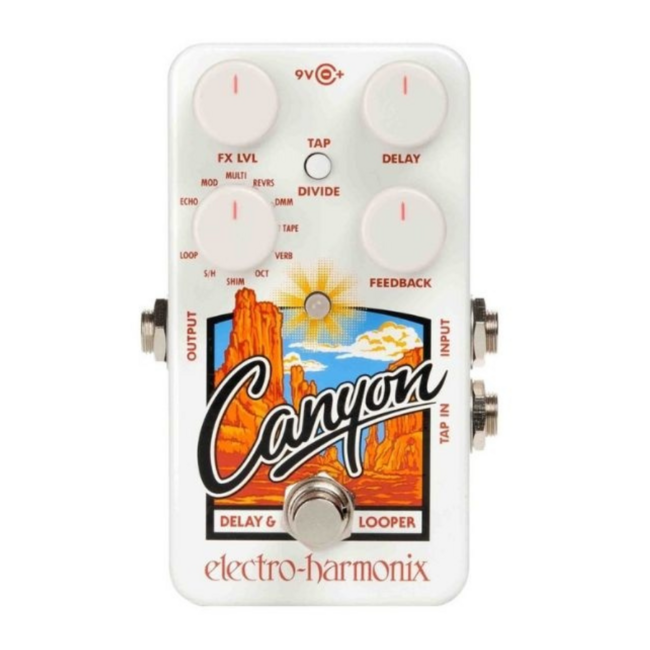

Electro Harmonix Canyon (Delay & Looper)

The Electro Harmonix Canyon Delay & Looper Pedal is a compact Delay and looper in one, offering 5ms to 3 seconds of delay time and a maximum loop of 62 seconds. Simplistic controls provide all you need to create pristine digital delays to warm and warbly tape echoes. The pedal also tap tempo capabilities and a tap divide to give you more control over the effects. Secondary control functions provide further tone shaping, perfect for finding the right sound for your playing. Delivering reverse and modulation delays, cascading octave shifts, shimmering sounds, and a deluxe memory man emulator, the Electro Harmonix Canyon is the perfect delay and looper for any pedalboard.

Powerful Delay & Looper

The Canyon features 10 different delay effects to choose from, and a powerful looper with a 62 seconds’ max loop, letting you create a range of amazing sounds to enhance your playing. A simple, yet powerful range of controls lets you adjust the effect’s delay time, number of repeats, and wet to dry ratio. The feedback control can also be used to adjust the level of the existing loop when overdrubbing in looper mode. A special internal switch lets you adjust whether the pedal still produces repeats when switched to bypass or if it suddenly stops. A tap tempo input is also added to the pedal, letting you connect tap tempo footswitch, and also includes a tap divide.

Features

• Offers up to 62 seconds of loop length
• Range of delay effects ranging between 5ms to 3 seconds of delay time
• Internal & external tap tempo capabilities with tap divide
• Internal trails switch sets pedal to produce repeats or stop immediately when set to bypass
• Hidden parameters for further tone shaping
• Rugged housing protects electronics

Specifications

• Modes:
  • Echo Digital Delay
  • Modulation
  • Multi-Tap
  • Reverse
  • Deluxe Memory Man
  • Tape
  • Reverb Plus Delay
  • Octave
  • Shimmer
  • Sample & Hold
  • Looper
• Controls:
  • FX Level
  • Delay
  • Mode Selector
  • Feedback
  • Tap/Divide Switch
  • Tails Switch (Internal)
• Delay range: 5ms – 3 Sec.
• Loop Length: 62 Seconds

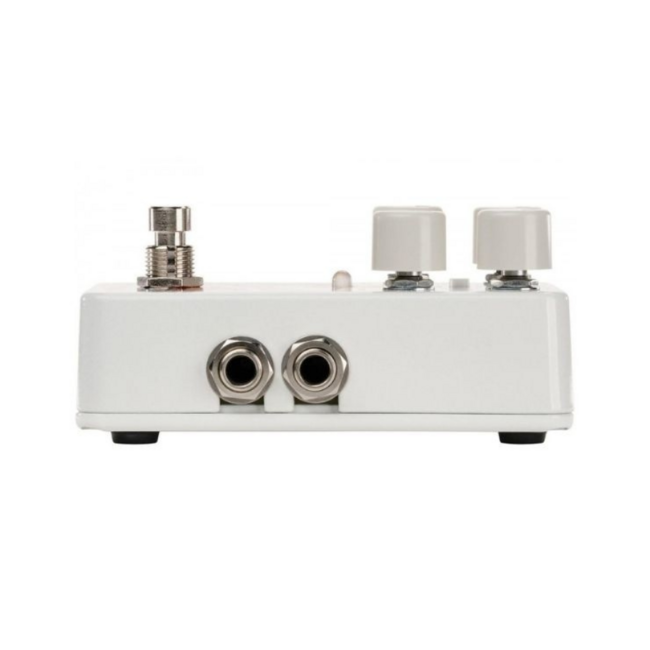

• Input: 1 x Instrument Jack, 1 x Tap Tempo
• Output: 1 x 1/4” Jack
• Power: 9V DC/9V Battery
• Width: 4” (102mm)
• Depth: 4.75” (121mm)
• Height: 2.25” (89mm)
• Includes: EHX 9.6DC-200 PSU
