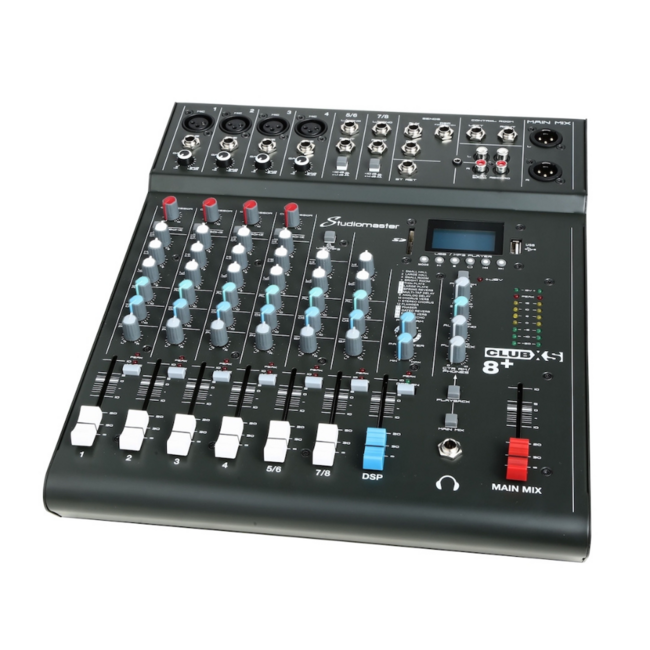

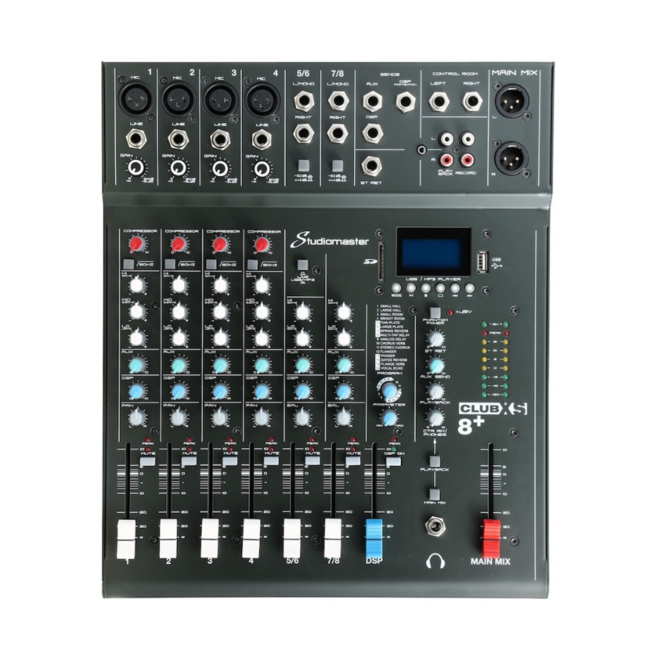

Studiomaster Club XS 8 Compact Analog Mixer with Bluetooth
Details
The Studiomaster Club XS 8 Compact Mixer features 8 inputs with 4 microphone channels and 2 stereo channels, along with 16 built-in DSP effects and USB/SD card compatibility. The built-in MP3 player and Bluetooth connectivity are ideal for playing background music during intervals while the USB and SD card functions allow you to directly record your performance. Complete with balanced XLR main outputs, a 3-band EQ, compressor control and high-quality 60mm faders, the Studiomaster Club XS Mixer is perfect for both home studio recording projects and live performances alike.
Features
- 8 input channels
- 3-band EQ on all mic channels
- High pass filters and adjustable compression on all mic channels
- Direct recording to USB/SD card, plus playback
- Bluetooth playback function
- +48V phantom power
- Balanced XLR main outputs
- Control room and headphone outputs for monitoring
- Studio-quality DSP effects
- High-quality faders, control knobs and I/O connectors
Specifications
- Inputs: 8
- Microphone Input Channels: 4
- Stereo Input Channels: 2
- Gain Range:
- Microphone: -16dB to -60dB
- Line: +10dB to -34dB
- Frequency Response: 10Hz - 20kHz (+1dB/-3dB)
- THD:
- Signal to Noise Ratio: 80dB
- Output Levels: +26dB Maximum (Balanced)
- +20dB Maximum (Unbalanced)
- Channel EQ:
- Hi: 12kHz
- Mid: 2.5kHz
- Low: 45Hz
- Low Cut: 80Hz
- MP3/USB/SD Audio Playback: 2-Channel Playback
- Bluetooth Playback: 2-Channel Playback
- DSP Effects: 16 Presets with Adjustable Parameter
- Power Requirements: 100V-240V 50Hz/60Hz
- Dimensions: 283mm x 359mm x 70mm (W x H x D)
