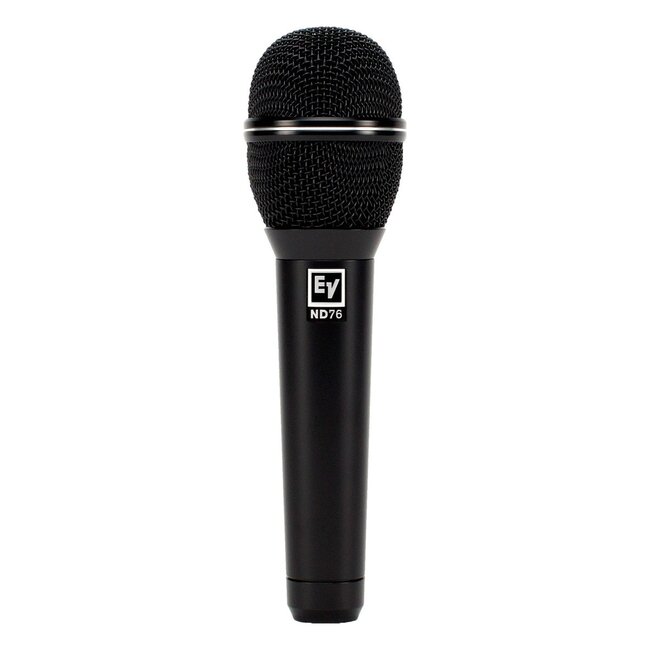

Electro-Voice ND76 Dynamic Cardioid Microphone

Electro-Voice are renowned for their excellent design expertise within the audio industry, and the ND Series of microphones is no exception. Consisting of eight microphones - four vocal mics, and four instrument mics - the ND Series boasts outstanding sound quality with a flexible array of professional features. The ND Series is the successor to the highly-regarded N/Dym series, designed for both live and studio appplications to deliver exceptional acoustic performance with unparalleled control and reliability. Each ND Series microphone is equipped with unique features that are perfectly suited to the application it has been designed for, ensuring that you achieve the results you demand no matter what. These new dynamic and condenser microphones each feature a high-performance capsule design with a variety of enhancements to take the N/Dym's legendary performance to new levels. The ND Series microphones are easy to set up thanks a selection of innovative mechanical solutions that eliminate the typical challenges often encountered on stage or in the studio. Dent-resistant Memraflex grilles, EMF noise-guarding humbucking coils, and robust shock-mounted capsules ensure that you achieve the best possible sound for your situation.

Included In The Box

• ND76 Dynamic Cardioid Vocal Microphone
• Gig Bag
• Stand Clip
• Euro-Thread Adapter

Features

• Extremely versatile vocal microphone
• Crisp, clear, and balanced sound
• Large-diaphragm dynamic capsule
• Rich and detailed frequency response
• Superior isolation from sound on stage
• 4-point suspension shock-mounted capsule
• Tuned pneumatic pump at the capsule base
• Superior handling noise and mechanical vibration reduction
• Humbucking coil prevents line hum and electromagnetic interference
• Robust die-cast zinc handle and dent-resistant memraflex grille
• Hydrophobic cloth membrane prevents moisture and debris reaching the diaphragm

• Microphone Element: Dynamic neodynium magnet structure
• Frequency Response:
  • Close: 30Hz - 17kHz
  • Far: 70Hz - 17kHz
• Polar Pattern: Cardioid
• Sensitivity (Open Circuit Voltage at 1kHz): 2.4mV/Pascal
• Maximum SPL: >140dB
• Polarity: Pin-2 positive, reference to pin 3 with positive pressure on diaphragm
• Impedance: 350 Ohms balanced (low-z)
• Microphone Connector: 3-pin XLR
• Finish: Black Polyurethane paint
• Material:
  • Zinc die-cast handle
  • Memraflex grille screen
• Dimensions:
  • Length: 182.5mm / 7.2''
  • Diameter: 50.5mm / 2''
  • Shank: 24.3mm / 0.96''
• Weight: 323g / 11.4 oz.
