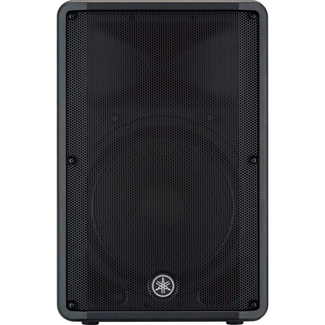

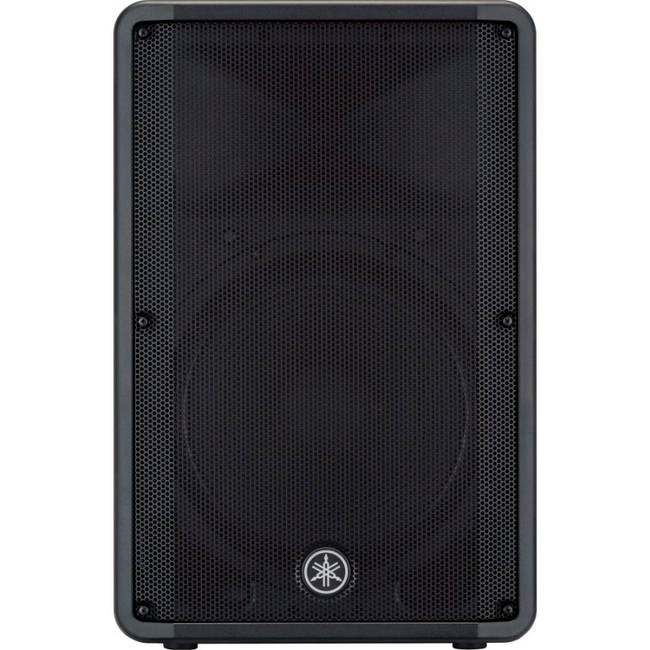

The Yamaha DBR15 15" Active PA Speaker is the flagship of Yamaha’s renowned DBR Series, combining studio-quality clarity, high SPL performance, and rugged portability in one versatile loudspeaker. With a 1000-watt peak (700W LF + 300W HF) Class-D bi-amplified power section delivering 465W RMS, the DBR15 produces massive, detailed sound with deep low end and sparkling highs — perfect for live bands, DJs, and installations. Its 15-inch woofer delivers tight, punchy bass, while the 1.4-inch compression driver ensures smooth, articulate high frequencies.
Equipped with Yamaha’s proprietary D-CONTOUR DSP technology, the DBR15 automatically optimises tonal balance for Front-of-House (FOH) or Monitor use, maintaining consistent clarity and power at any level. The lightweight polypropylene enclosure is designed for life on the road — durable, portable, and easy to mount on a stand or pole. With flexible inputs, a powerful amplifier, and Yamaha’s legendary reliability, the DBR15 is the ultimate all-purpose powered speaker for professional sound.

Model: Yamaha DBR15
Type: Active (Powered) 2-Way PA Speaker
Amplifier Type: Class-D Bi-Amplified
Continuous Power Output: 465W RMS (LF 325W + HF 140W)
Dynamic/Peak Power Output: 1000W Peak (LF 700W + HF 300W)
Frequency Response: 50Hz – 20kHz
Maximum SPL: 132 dB
Drivers:
- LF: 15" Cone Woofer
- HF: 1.4" Compression Driver
Crossover Frequency: 2.3kHz

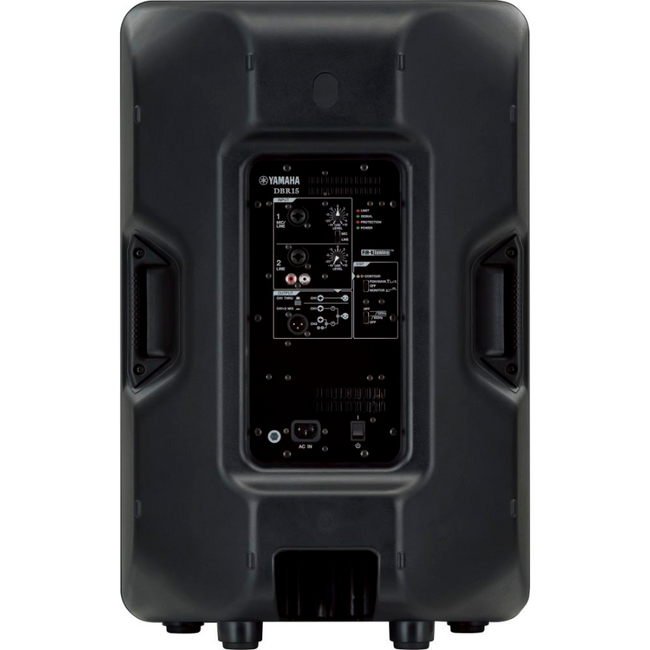

Inputs:
- 2 x Combo (XLR/TRS) Inputs
- 1 x RCA Stereo Input
Outputs:
- XLR Mix Output
Controls:
- Level Controls (CH1/CH2)
- D-CONTOUR Switch (FOH/Monitor)
- HPF Switch (100Hz / 120Hz)
DSP: Yamaha D-CONTOUR & Smart Dynamic Protection
Cabinet Material: Lightweight Polypropylene

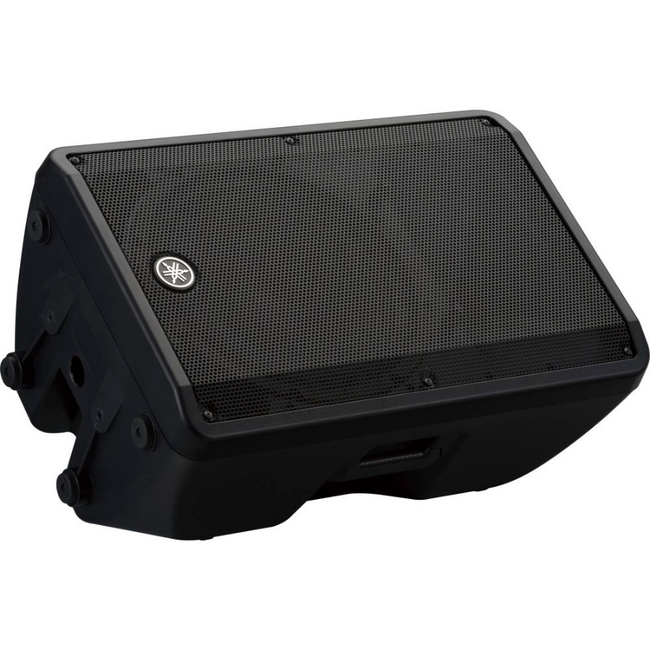

Mounting Options: 35mm Pole Mount Socket, Floor Monitor (50° Angle)
Power Supply: 100–240V AC, 50/60Hz
Dimensions: 700 x 445 x 378 mm (H x W x D)
Weight: 19.3 kg
Finish: Black Textured
Special Features: D-CONTOUR DSP, Bi-amplified Class-D system, FOH/Monitor modes, Extended low-frequency output

Key Highlights – Yamaha DBR15 15" Active PA Speaker

• Powerful Output – 465W RMS / 1000W Peak Class-D bi-amplified system for professional performance.

• Full-Range Sound – 15" woofer and 1.4" compression driver deliver rich lows and crystal-clear highs.

• Intelligent DSP – Yamaha D-CONTOUR optimises EQ for FOH or monitor applications.

• Durable Yet Portable – Lightweight polypropylene cabinet with integrated pole mount and wedge angles.

• Versatile Connectivity – Mic, line, and RCA inputs with mix output for flexible setups.
